线端插头胶壳 0.8mm ,20位 ,PA46
FHG08002-S20M6W5B

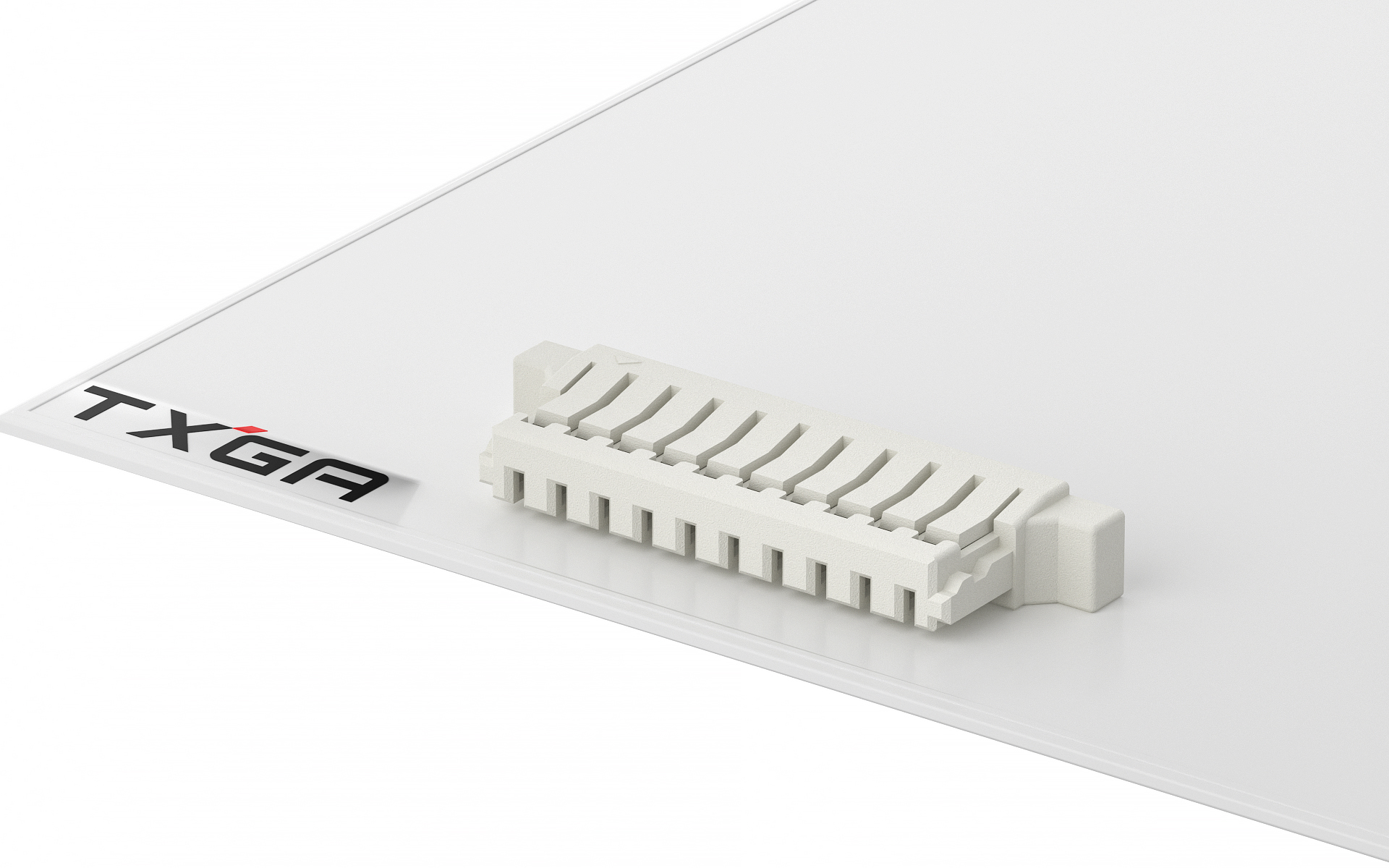

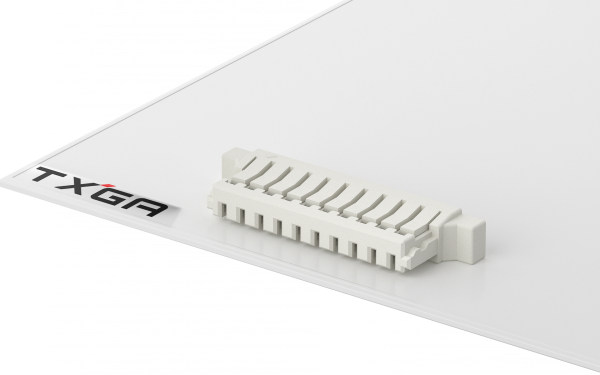

Wire to board housing 0.8mm, 20Circuits, PA46
FHG08002-S20M6W5B Copy
Share this product
Stock(pcs)
818
Lead time

≦ 818 In stock

＞ 818 Estimated delivery date 2025-10-13

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.431712
10 $0.287808
50 $0.246693
100 $0.226135
500 $0.191187
1000 $0.139279
5000 $0.137223
10000 $0.135167

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
0.8mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG08002 Series
Terminal
Wire to board terminal 0.8mm Female(Gold-Plated)

FT08001-F1H

Wire to board terminal 0.8mm Female(Gold-Plated)
Receptacle
Wafer 0.80mm, 20Circuits, 180° Vertical(SMT), Gold, LCP

FWF08001-S20S13W5M

Wafer 0.80mm, 20Circuits, 180° Vertical(SMT), Gold, LCP

 Wafer 0.80mm, 20Circuits, 90° Angle(SMT), Gold, LCP

FWF08002-S20B13W5M

Wafer 0.80mm, 20Circuits, 90° Angle(SMT), Gold, LCP
