板装插座 0.80mm ,20位 ,立贴 ,镀金 ,LCP
FWF08001-S20S13W5M

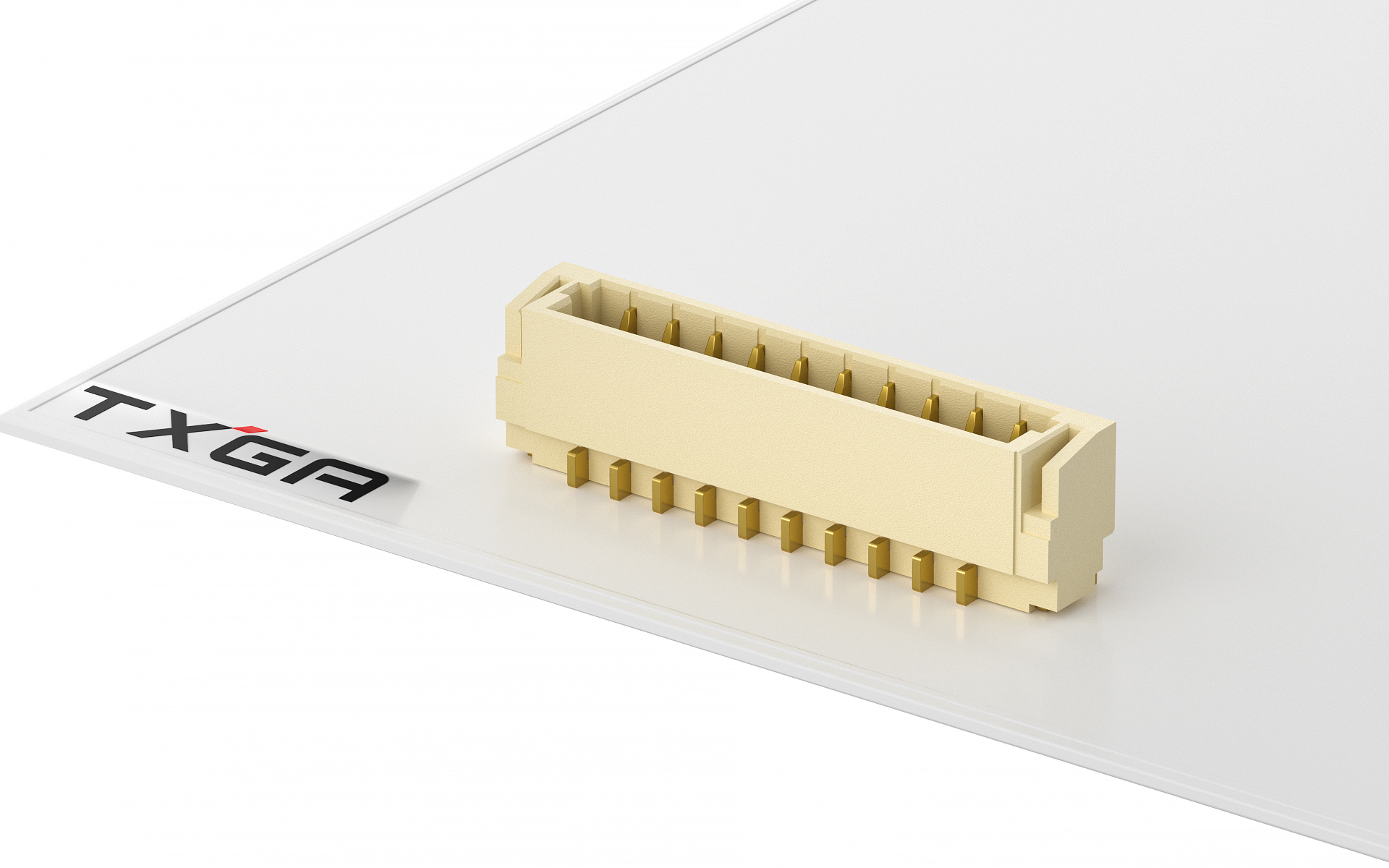

Wafer 0.80mm, 20Circuits, 180° Vertical(SMT), Gold, LCP
FWF08001-S20S13W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-05-30
MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.488371
10 $0.423255
50 $0.351627
100 $0.320697
500 $0.281627
1000 $0.219767
5000 $0.216511
10000 $0.213255
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
30V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF08001 Series

Product Specifications

FWF08001Productspecification.pdf
Plug
Wire to board housing 0.8mm, 20Circuits, PA46

FHG08002-S20M6W5B

Wire to board housing 0.8mm, 20Circuits, PA46
