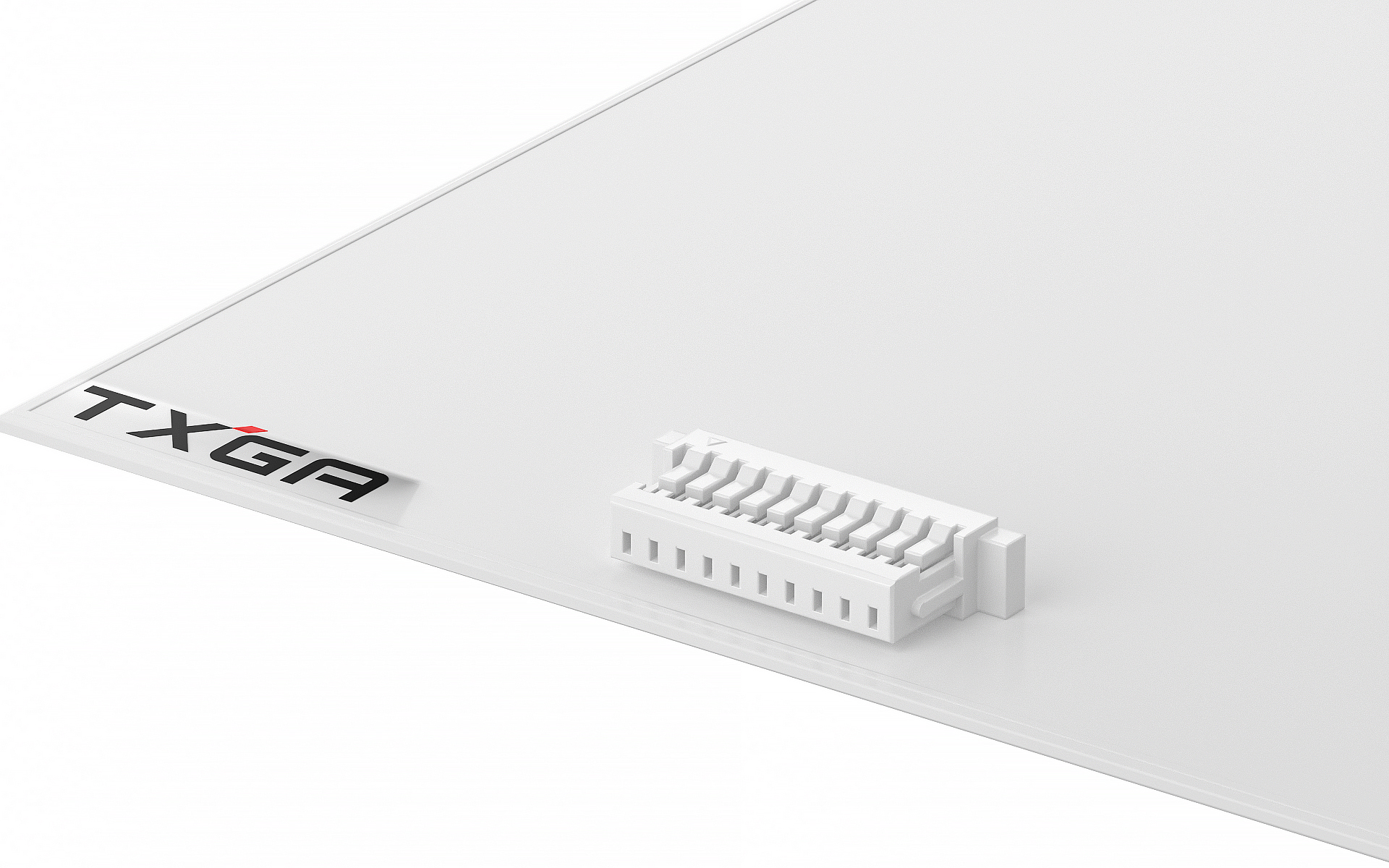

线端插头胶壳 1mm 20位
FHG10001-S20M2W1B
Wire to board housing 1mm 20Circuits
FHG10001-S20M2W1B Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-13
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.108789
10 $0.101810
50 $0.087853
100 $0.080874
500 $0.066917
1000 $0.044259
2500 $0.043655
5000 $0.043050
10000 $0.042446
25000 $0.041842

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
1mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
50V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG10001series

3D Drawings

FHG10001-S20M2W1B-REF
Terminal
Wire to board terminal 1mm Female(Tin-Plated)

FT10001-F2H

Wire to board terminal 1mm Female(Tin-Plated)
Receptacle
Wafer 1mm 90°Angle 20Circuits (SMT)

FWF10001-S20B24W5M

Wafer 1mm 90°Angle 20Circuits (SMT)

 Wafer 1mm 180°Vertical 20Circuits (SMT)

FWF10002-S20S24W5M

Wafer 1mm 180°Vertical 20Circuits (SMT)
