板装插座 1mm 立贴 20位 (9T)
FWF10002-S20S24W5M

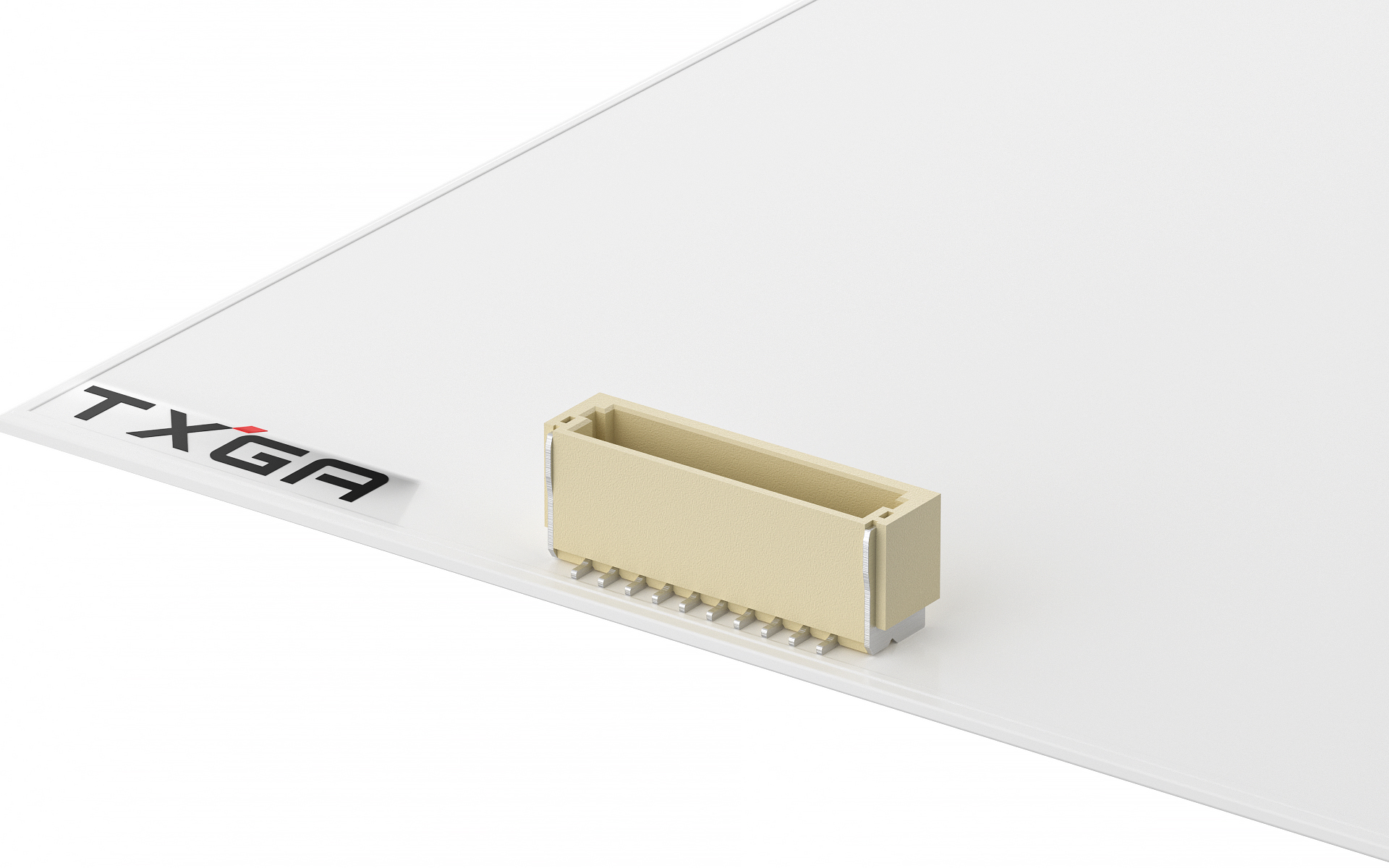

Wafer 1mm 180°Vertical 20Circuits (SMT)
FWF10002-S20S24W5M Copy
Share this product
Stock(pcs)
20
Lead time

≦ 20 In stock

＞ 20 Estimated delivery date 2025-10-13

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.430285
10 $0.291979
50 $0.251000
100 $0.230510
500 $0.195677
1000 $0.144965
5000 $0.142916
10000 $0.140867

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1mm
Row Option
Single row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
50V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF10002series

Product Specifications

FWF10002Productspecification.pdf
Plug
Wire to board housing 1mm 20Circuits

FHG10001-S20M2W1B

Wire to board housing 1mm 20Circuits
