线端插头胶壳 1.25mm 4位
FHG12502-S04M2W1B

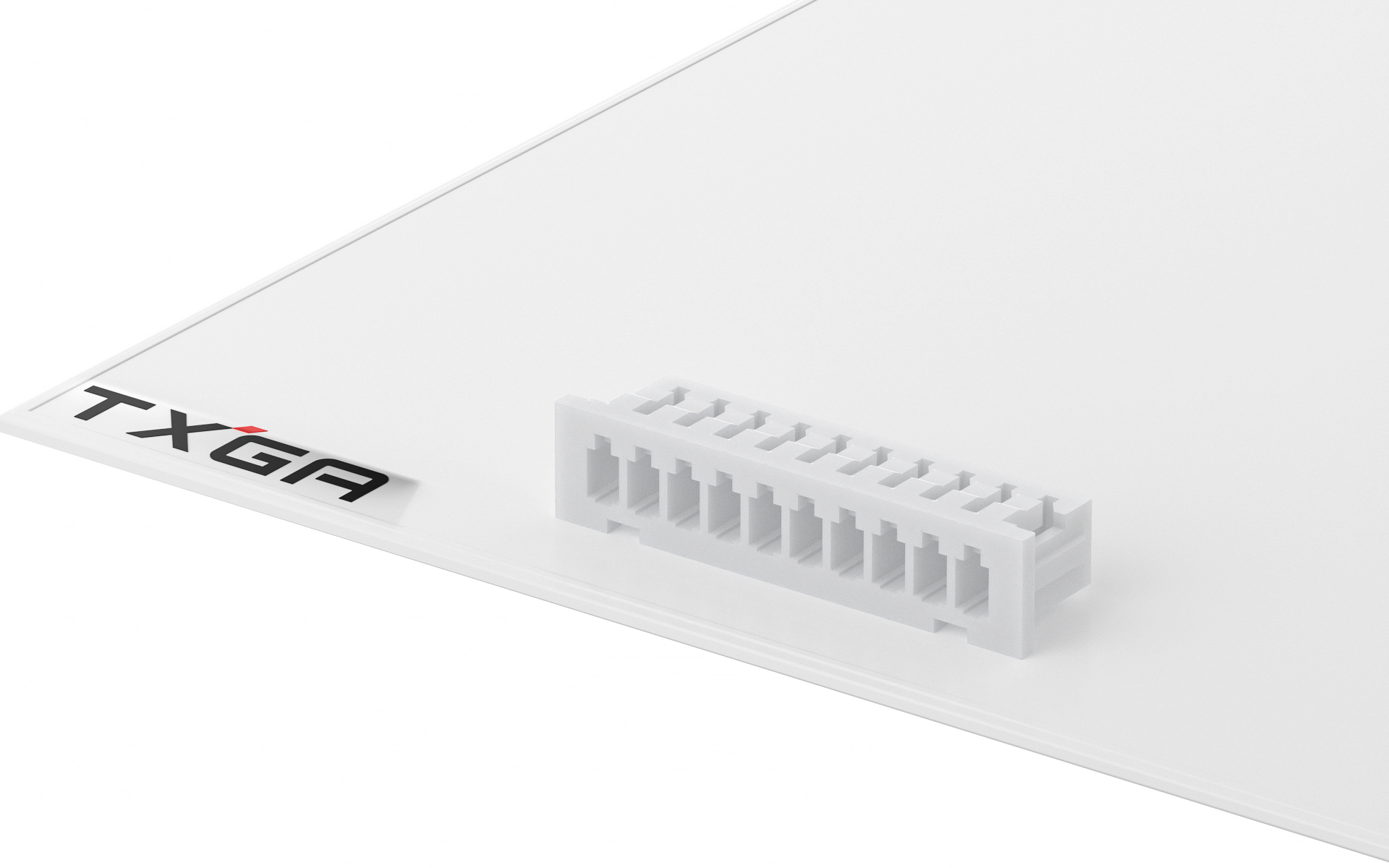

Wire to board housing 1.25mm 4Circuits
FHG12502-S04M2W1B Copy
Share this product
Stock(pcs)
801
Lead time

≦ 801 In stock

＞ 801 Estimated delivery date 2025-12-29

MPQ
2000
MOQ
2000
Quantity Unit Price
1 $0.019381
10 $0.018069
50 $0.015445
100 $0.014133
500 $0.011509
1000 $0.006863
2500 $0.006770
5000 $0.006676
10000 $0.006583
25000 $0.006490

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
1.25mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
125V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG12502.pdf

3D Drawings

FHG12502-S04M2W1B_REF
Terminal
Wire to board terminal 1.25mm Female(Tin-Plated)

FT12501-F2H

Wire to board terminal 1.25mm Female(Tin-Plated)
Plug
Wire to board housing 1.25mm 4Circuits

FHG12508-S04F2W1B

Wire to board housing 1.25mm 4Circuits
Receptacle
Wafer 1.25mm 90°Angle 4Circuits (SMT)

FWF12504-S04B24W5M

Wafer 1.25mm 90°Angle 4Circuits (SMT)

 Wafer 1.25mm 180°Vertical 4Circuits (SMT)

FWF12505-S04S24W5M

Wafer 1.25mm 180°Vertical 4Circuits (SMT)

 Wafer 1.25mm 180°Vertical 4Circuits (DIP)

FWF12506-S04S24W5B

Wafer 1.25mm 180°Vertical 4Circuits (DIP)

 Wafer 1.25mm 90°Angle 4Circuits (DIP)

FWF12507-S04B24W5B

Wafer 1.25mm 90°Angle 4Circuits (DIP)
