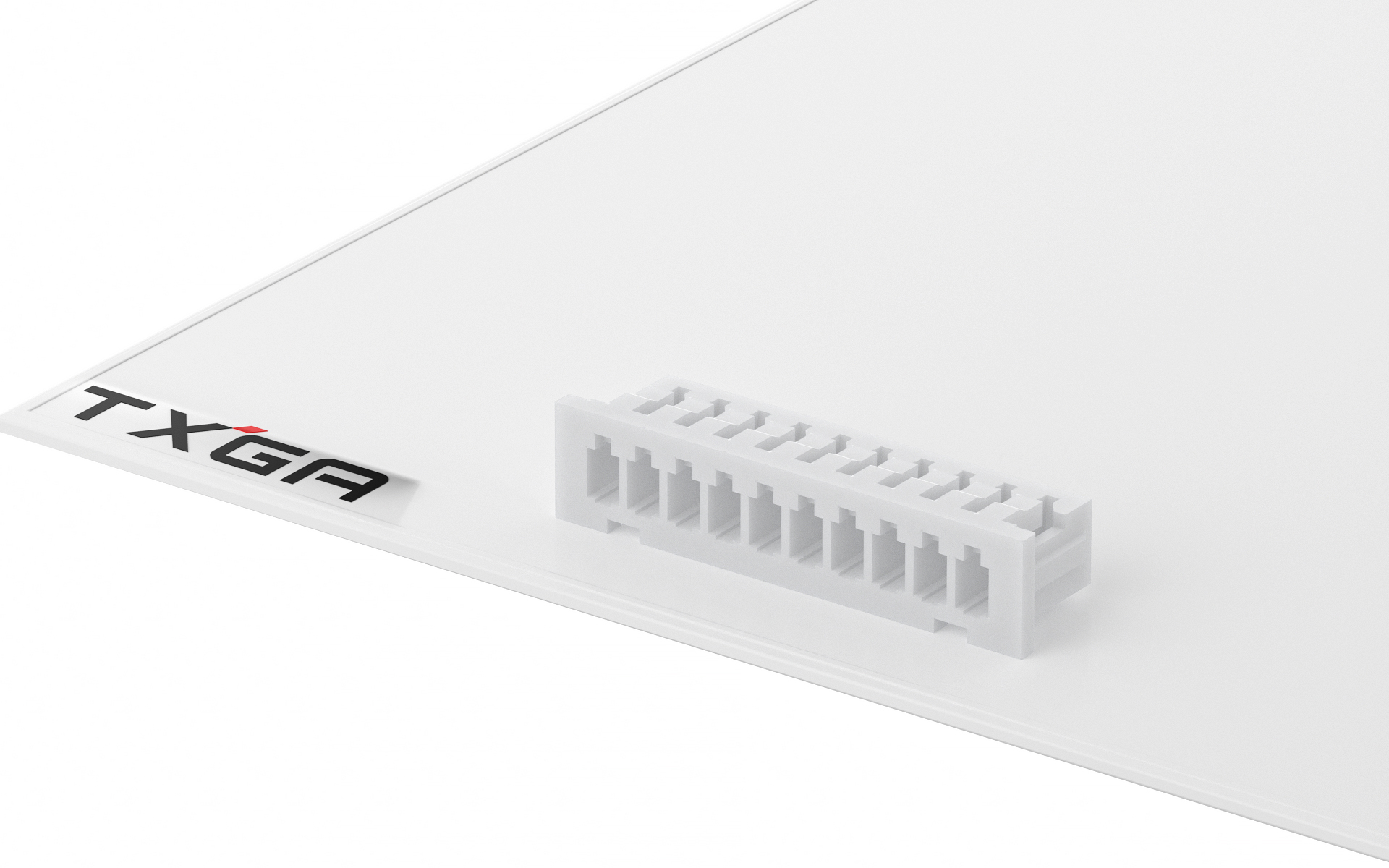

线端插头胶壳 1.25mm 12位
FHG12502-S12M2W1B
Wire to board housing 1.25mm 12Circuits
FHG12502-S12M2W1B Copy
Share this product
Stock(pcs)
300
Lead time

≦ 300 In stock

＞ 300 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.056022
10 $0.052230
50 $0.044645
100 $0.040853
500 $0.033268
1000 $0.019839
2500 $0.019569
5000 $0.019299
10000 $0.019030
25000 $0.018760

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
1.25mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
White
Electrical
Current(Max)
1A
Voltage(Max)
125V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FHG12502.pdf

3D Drawings

FHG12502-S12M2W1B-REF
Terminal
Wire to board terminal 1.25mm Female(Tin-Plated)

FT12501-F2H

Wire to board terminal 1.25mm Female(Tin-Plated)
Plug
Wire to board housing 1.25mm 12Circuits

FHG12508-S12F2W1B

Wire to board housing 1.25mm 12Circuits
Receptacle
Wafer 1.25mm 90°Angle 12Circuits (SMT)

FWF12504-S12B24W5M

Wafer 1.25mm 90°Angle 12Circuits (SMT)

 Wafer 1.25mm 180°Vertical 12Circuits (SMT)

FWF12505-S12S24W5M

Wafer 1.25mm 180°Vertical 12Circuits (SMT)

 Wafer 1.25mm 180°Vertical 12Circuits (DIP)

FWF12506-S12S24W5B

Wafer 1.25mm 180°Vertical 12Circuits (DIP)

 Wafer 1.25mm 90°Angle 12Circuits (DIP)

FWF12507-S12B24W5B

Wafer 1.25mm 90°Angle 12Circuits (DIP)
