板装插座 1.25mm 卧贴 12位 (9T)
FWF12504-S12B24W5M

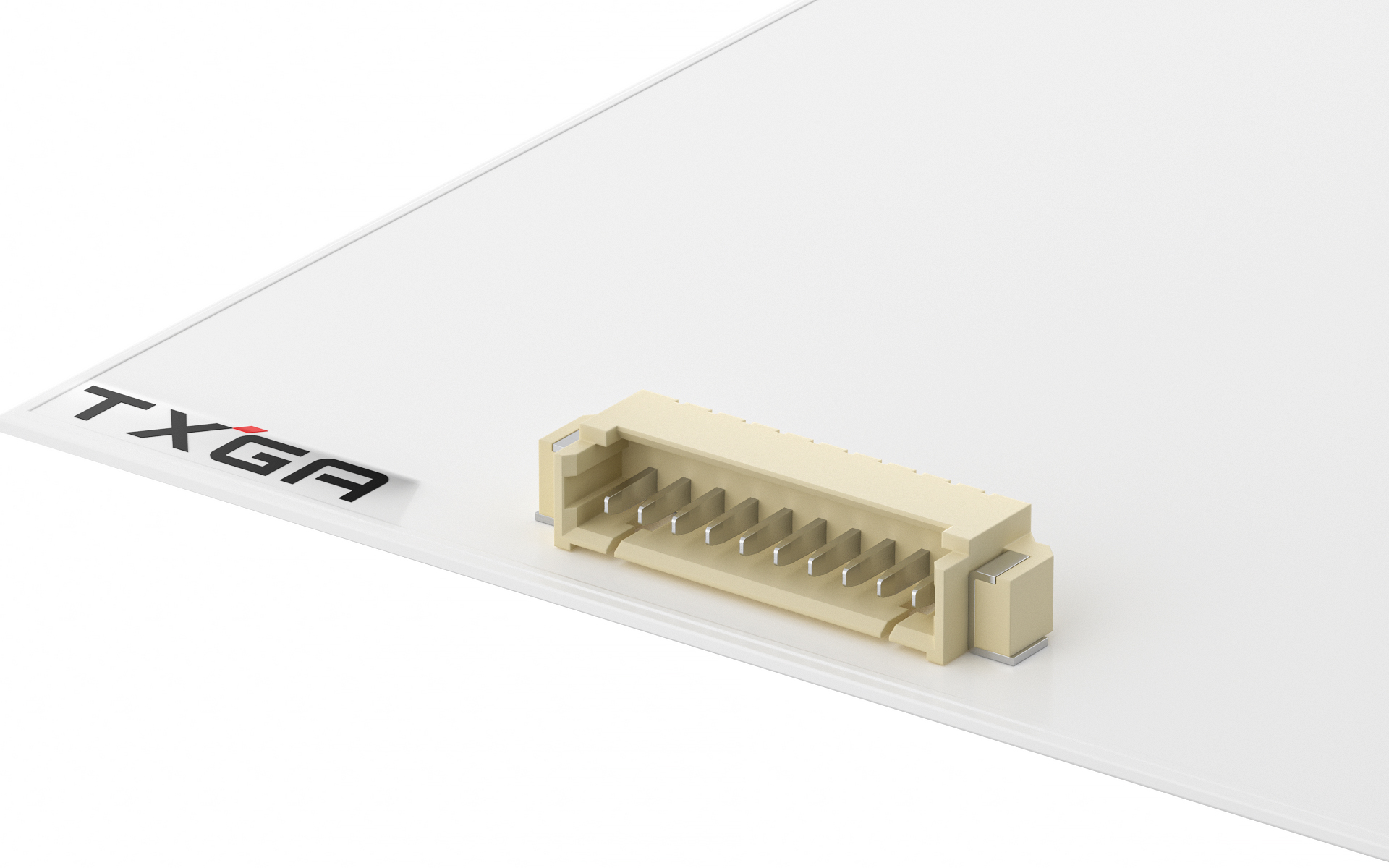

Wafer 1.25mm 90°Angle 12Circuits (SMT)
FWF12504-S12B24W5M Copy
Share this product
Stock(pcs)
936
Lead time

≦ 936 In stock

＞ 936 Estimated delivery date 2025-06-05

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.227912
10 $0.151942
50 $0.130236
100 $0.119383
500 $0.100933
1000 $0.073529
5000 $0.072444
10000 $0.071358
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12504 series

Product Specifications

FWF12504Productspecification.pdf
Plug
Wire to board housing 1.25mm 12Circuits

FHG12502-S12M2W1B

Wire to board housing 1.25mm 12Circuits
