线端插头胶壳 1.25mm 20位 棕色
FHG12505-D20M2C1B

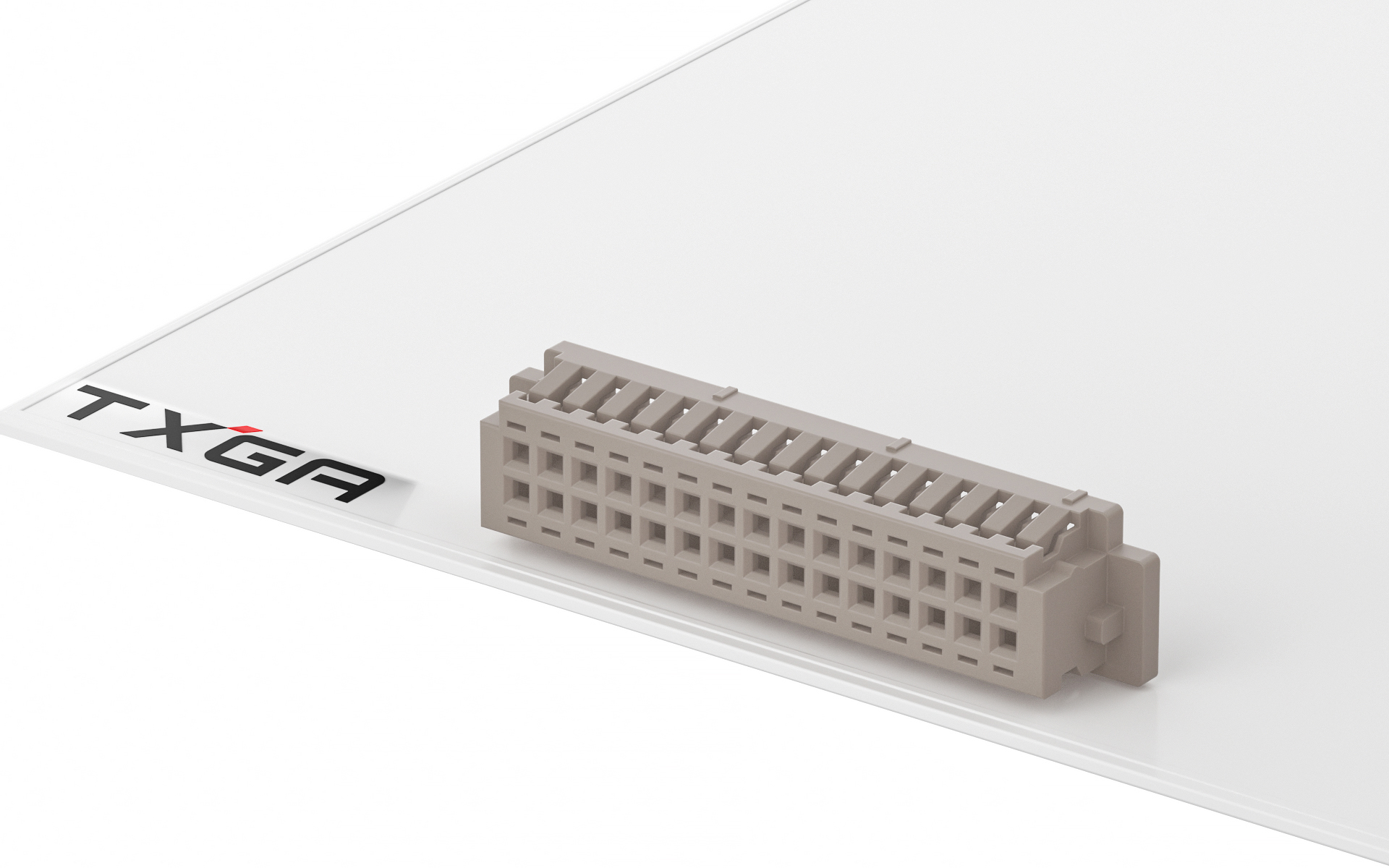

Wire to board housing 1.25mm 20Circuits
FHG12505-D20M2C1B Copy
Share this product
Stock(pcs)
545
Lead time

≦ 545 In stock

＞ 545 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.131012
10 $0.122608
50 $0.105799
100 $0.097395
500 $0.080587
1000 $0.053300
2500 $0.052572
5000 $0.051845
10000 $0.051117
25000 $0.050389

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
1.25mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Brown
Electrical
Current(Max)
1A
Voltage(Max)
125V
Operating Temperature Range
-25ºC~+85ºC
Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

Drawing-FHG12505

3D Drawings

FHG12505-D20M2C1B_REF
Terminal
Wire to board terminal 1.25mm Female(Gold-plated)

FT12504-F1H

Wire to board terminal 1.25mm Female(Gold-plated)
Receptacle
Wafer 1.25mm 180°Vertical 20Circuits (SMT)

FWF12511-D20S14W5M

Wafer 1.25mm 180°Vertical 20Circuits (SMT)
