板装插座 1.25mm 立贴 20位 (9T) (镀金)

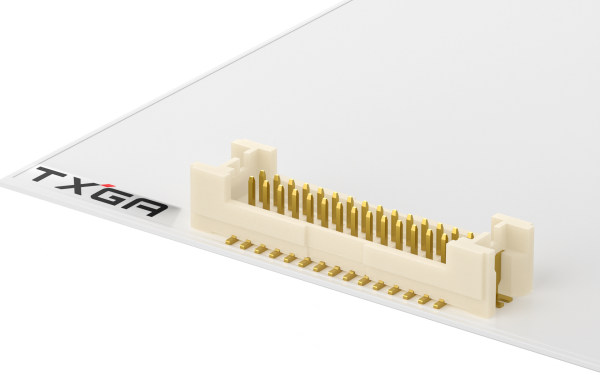

FWF12511-D20S14W5M
Wafer 1.25mm 180°Vertical 20Circuits (SMT)
FWF12511-D20S14W5M Copy
Share this product
Stock(pcs)
691
Lead time

≦ 691 In stock

＞ 691 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.486256
10 $0.458603
50 $0.403295
100 $0.375642
500 $0.320335
1000 $0.249913
2500 $0.246477
5000 $0.243042
10000 $0.239607
25000 $0.236172

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Dual row
Number of Positions
20Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Brass
Plating
Gold plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12511 Series

Product Specifications

FWF12511Productspecification.pdf
Plug
Wire to board housing 1.25mm 20Circuits

FHG12505-D20M2C1B

Wire to board housing 1.25mm 20Circuits
