FM5C120103-A02R0200000

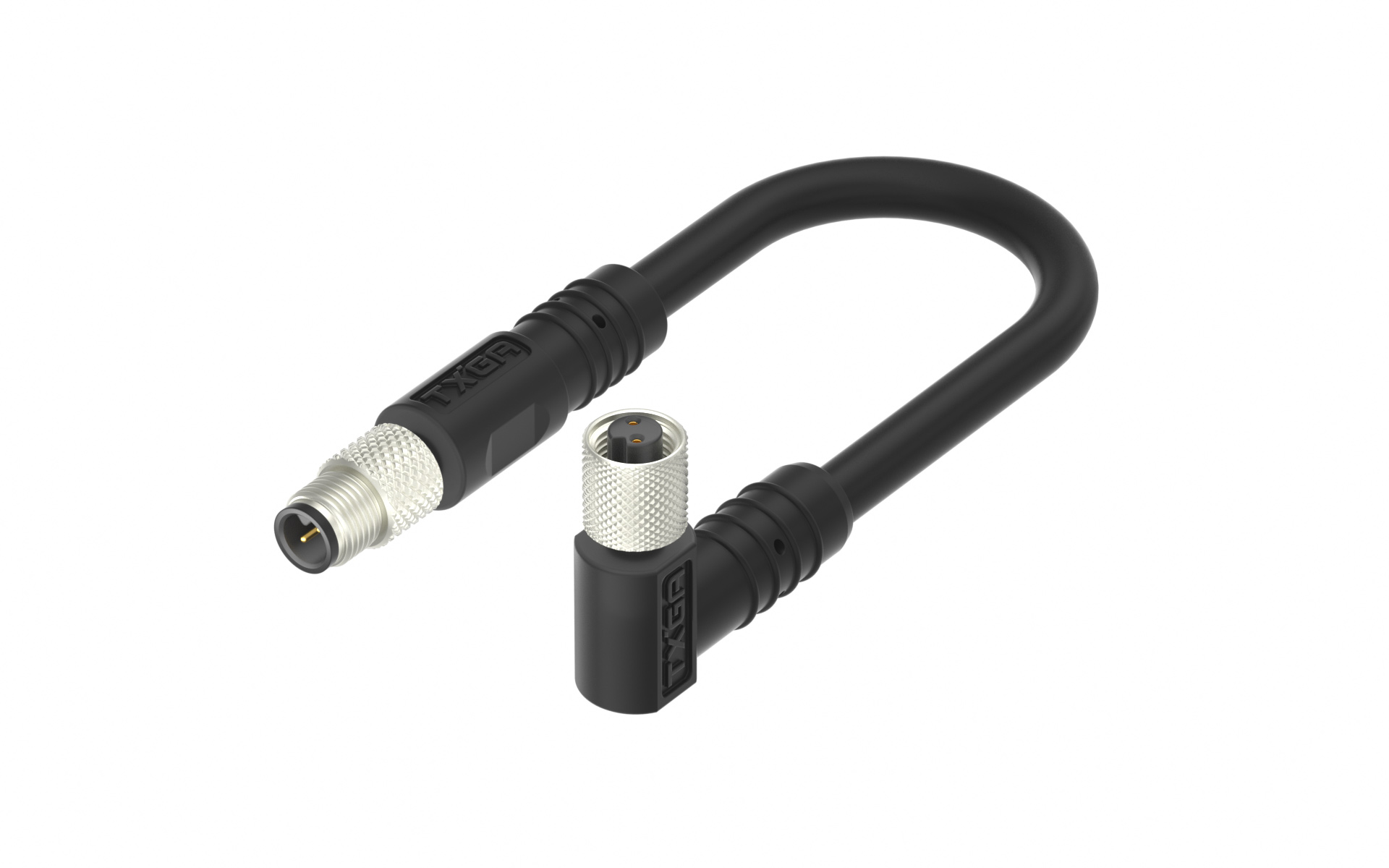

M5x0.5 2芯公端直头转母端弯头，母主体朝向90°，带线长L=2米
M5x0.5 2Circuits male straight to right angle female , female housing entry 90°, cable length L=2M
Product Number：FM5C120103-A02R0200000
Production Status： Active
M5x0.5 2Circuits male straight to right angle female , female housing entry 90°, cable length L=2M
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{35.350317|tradeCurrencySymbol({digits:6})}}
10+ {{32.447151|tradeCurrencySymbol({digits:6})}}
50+ {{29.543985|tradeCurrencySymbol({digits:6})}}
100+ {{27.153142|tradeCurrencySymbol({digits:6})}}
500+ {{24.42075|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 200

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M5 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Male Straight to Female Bent
Number of Positions
2Circuits
Angle-Key
90°
Cable Length(mm)
L=2000mm
Current(Max)
1A
Voltage(Max)
60V
Insulation Resistance
10 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
100
Material of Housing
Metal
Packaging
PE Bag

Product Drawings

FM5C120103.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
