FM8C030407-A04E0050000
板前安装,M8X1.0公插座带以太网电缆,A编码4位,单端带多芯线长L=500mm
Front fastened, M8X1.0 male socket with Ethernet, A Coded 4pin, with cable L=500mm, free end
Product Number:FM8C030407-A04E0050000
Production Status: Active

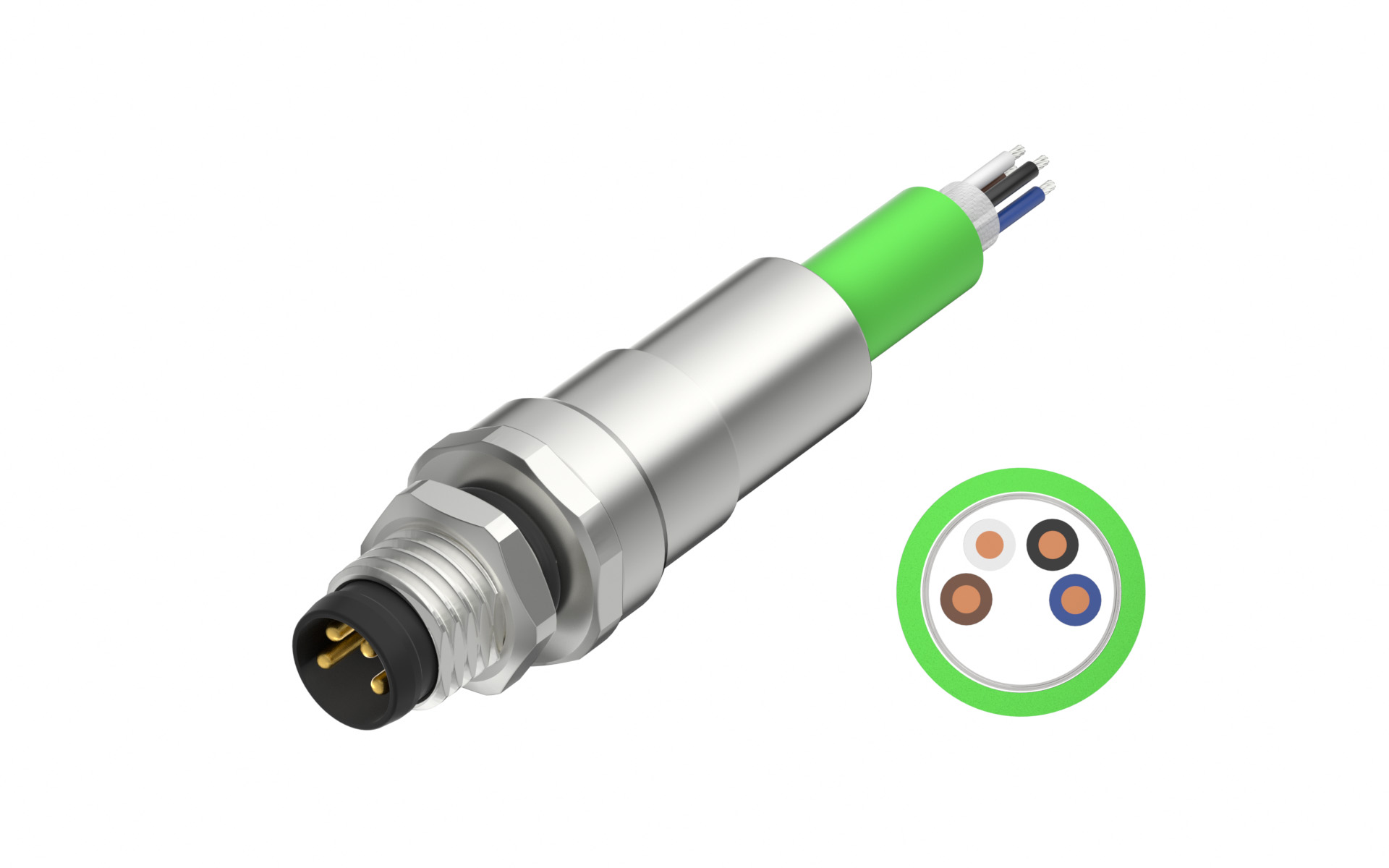

Front fastened, M8X1.0 male socket with Ethernet, A Coded 4pin, with cable L=500mm, free end
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{46.680246|tradeCurrencySymbol({digits:6})}}
10+ {{42.846602|tradeCurrencySymbol({digits:6})}}
50+ {{39.012959|tradeCurrencySymbol({digits:6})}}
100+ {{35.855841|tradeCurrencySymbol({digits:6})}}
500+ {{32.247706|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 2
MPQ 100

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Gender
Male
Coding
A coding
Shielded
Shielded
Number of Positions
4Circuits
Contacts Type
pin
Colour
Black
Cable Length(mm)
L=500mm
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M8x1.0
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
PE Bag

Product Drawings

3D Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
