FM8C050401-A04E0200000

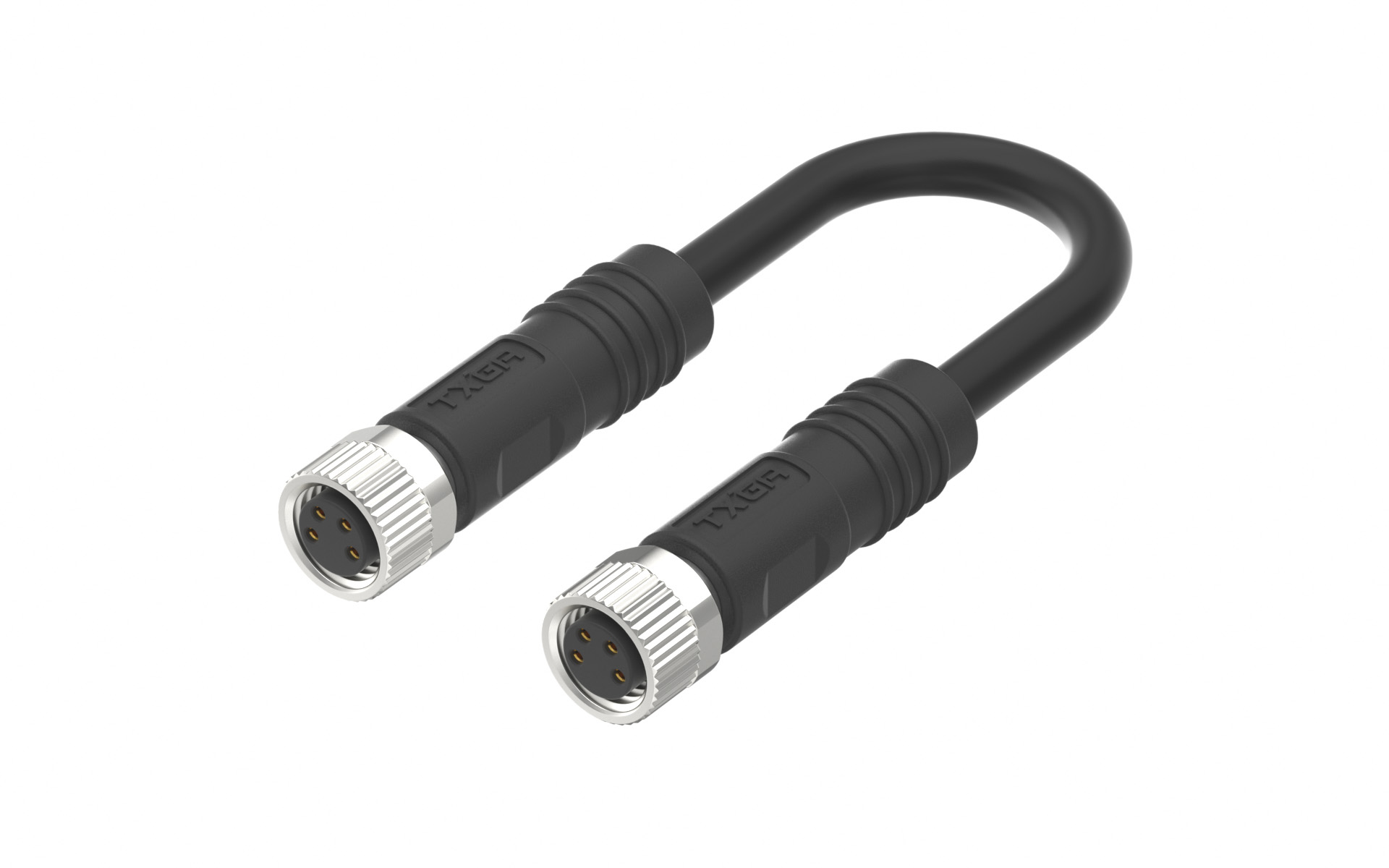

M8X1.0 A编码4芯,母端直头双端带屏蔽,PUR线长L=2米
M8X1.0 A Coded 4pin, female straight with shield, PUR cable length L=2M
Product Number:FM8C050401-A04E0200000
Production Status: Active
M8X1.0 A Coded 4pin, female straight with shield, PUR cable length L=2M
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{92.621309|tradeCurrencySymbol({digits:6})}}
10+ {{84.864845|tradeCurrencySymbol({digits:6})}}
50+ {{78.020905|tradeCurrencySymbol({digits:6})}}
100+ {{71.633229|tradeCurrencySymbol({digits:6})}}
500+ {{64.333027|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 2
MPQ 100

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Shielded
Cable Category
Female Straight to straight
Number of Positions
4Circuits
Cable Length(M)
L=2M
Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
100
Material of Housing
Metal
Packaging
PE Bag

Product Drawings

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
