板装插座 1.25mm 卧贴 7位 (9T)
FWF12504-S07B24W5M

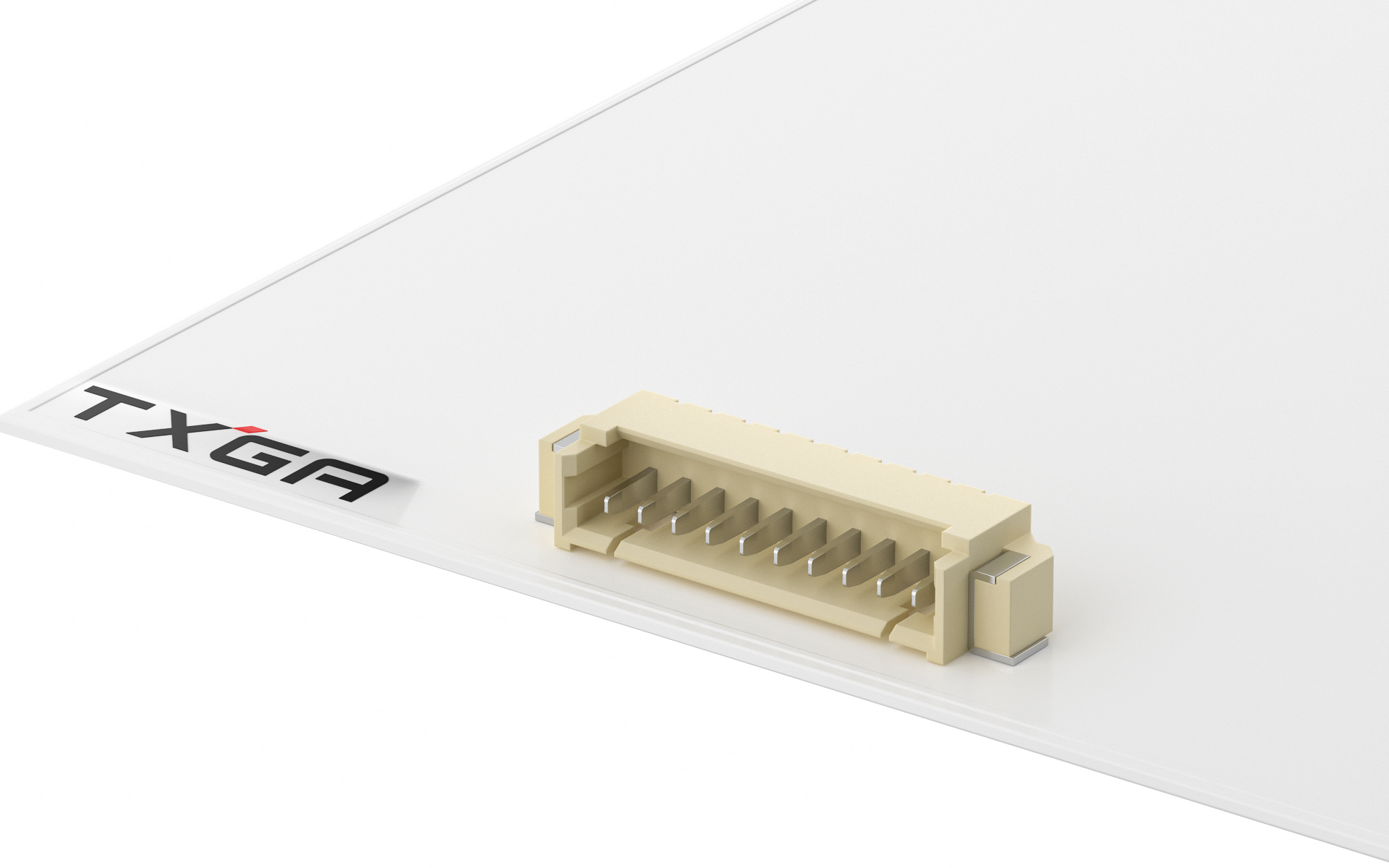

Wafer 1.25mm 90°Angle 7Circuits (SMT)
FWF12504-S07B24W5M Copy
Share this product
Stock(pcs)
1390
Lead time

≦ 1390 In stock

＞ 1390 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.289401
10 $0.130825
50 $0.109021
100 $0.095146
500 $0.087217
1000 $0.053916
5000 $0.053123
10000 $0.052330

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12504 series

Product Specifications

FWF12504Productspecification.pdf
Plug
Wire to board housing 1.25mm 7Circuits

FHG12502-S07M2W1B

Wire to board housing 1.25mm 7Circuits
