板装插座 1.25mm 卧贴 9位 (9T)

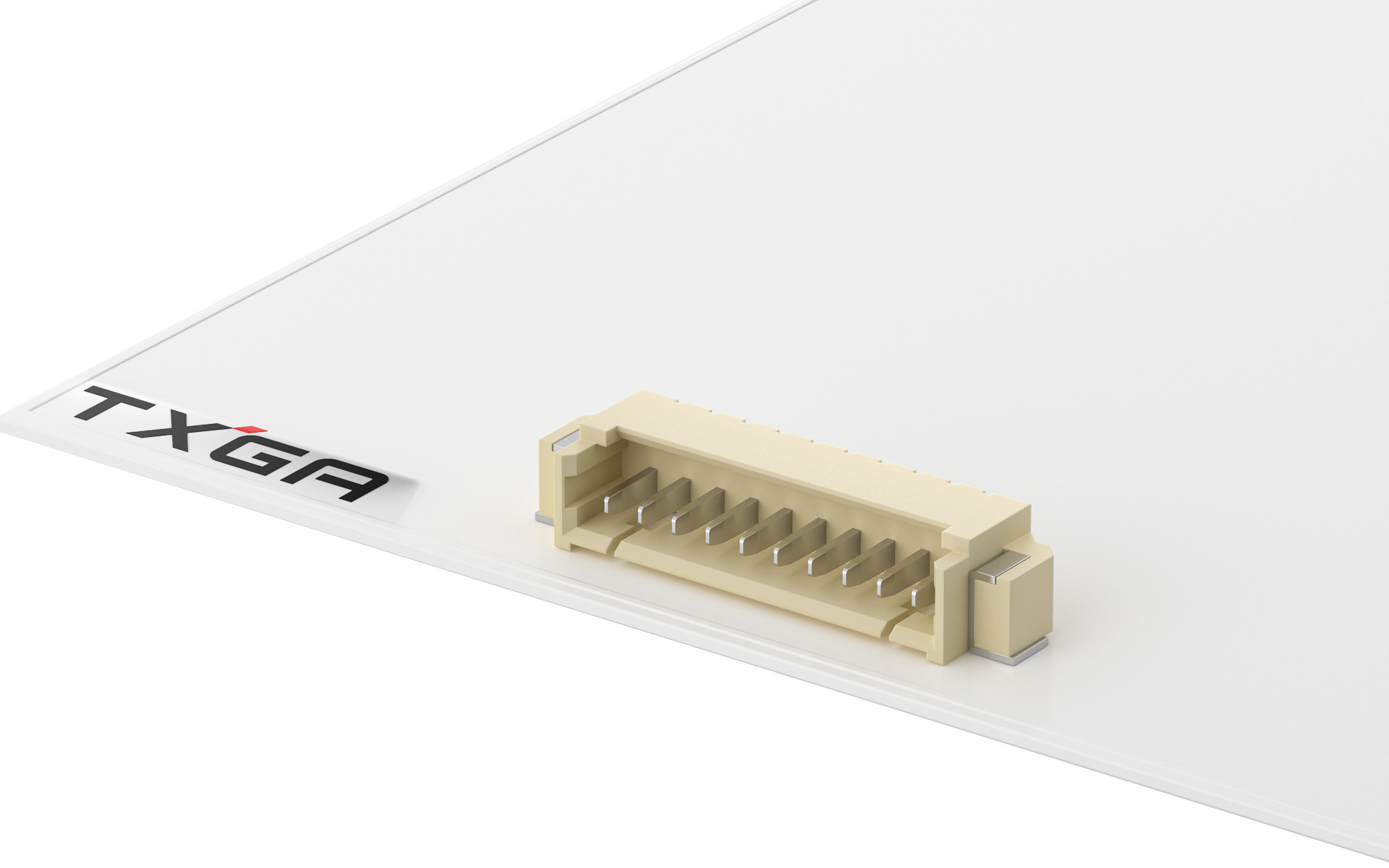

FWF12504-S09B24W5M
Wafer 1.25mm 90°Angle 9Circuits (SMT)
FWF12504-S09B24W5M Copy
Share this product
Stock(pcs)
516
Lead time

≦ 516 In stock

＞ 516 Estimated delivery date 2025-12-29

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.193753
10 $0.129169
50 $0.110716
100 $0.101490
500 $0.085805
1000 $0.062508
5000 $0.061586
10000 $0.060663

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
9Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12504 series

Product Specifications

FWF12504Productspecification.pdf
Plug
Wire to board housing 1.25mm 9Circuits

FHG12502-S09M2W1B

Wire to board housing 1.25mm 9Circuits
