板装插座 1.25mm 插件 90° 14位 (46)

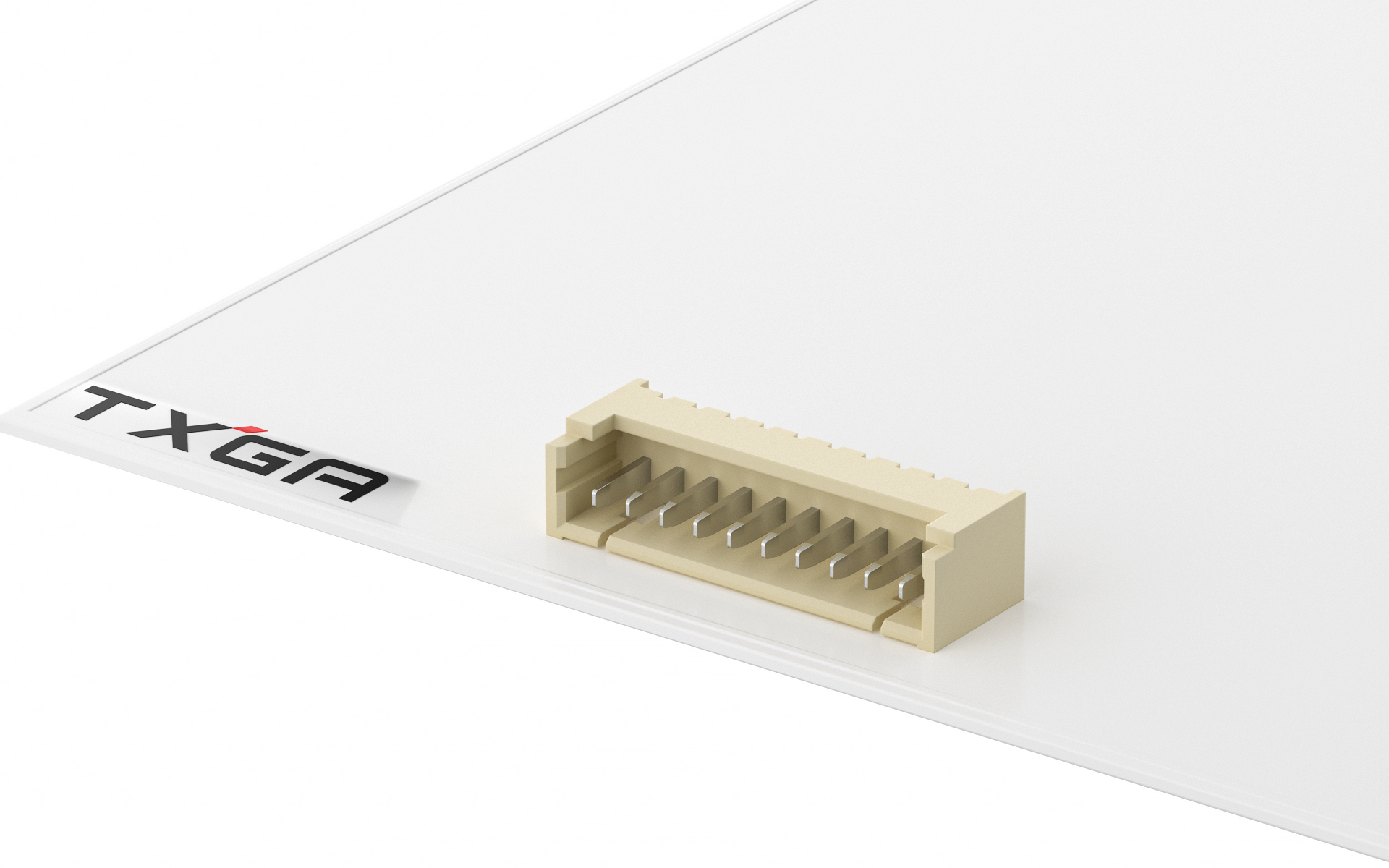

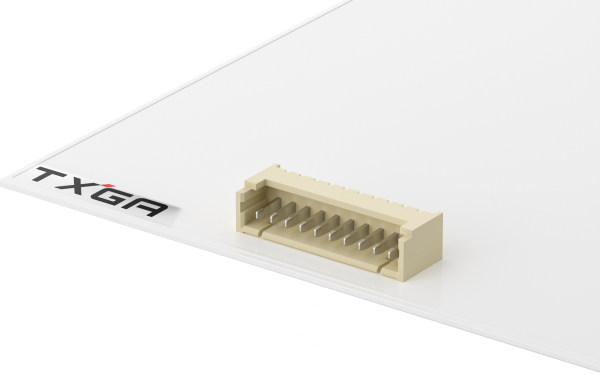

FWF12507-S14B24W5B
Wafer 1.25mm 90°Angle 14Circuits (DIP)
FWF12507-S14B24W5B Copy
Share this product
Stock(pcs)
40
Lead time

≦ 40 In stock

＞ 40 Estimated delivery date 2025-10-14

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.340949
10 $0.154128
50 $0.128440
100 $0.112093
500 $0.102752
1000 $0.063519
5000 $0.062585
10000 $0.061651

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Female
Pitch
1.25mm
Row Option
Single row
Number of Positions
14Circuits
Orientation
Right angle(90°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Phosphor bronze
Plating
Bright tin plated
Material-Resin
PA46
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

FWF12507 series

Product Specifications

FWF12507Productspecification.pdf
Plug
Wire to board housing 1.25mm 14Circuits

FHG12502-S14M2W1B

Wire to board housing 1.25mm 14Circuits
