板装插座 1.25mm ,4位 ,立贴 ,PA9T

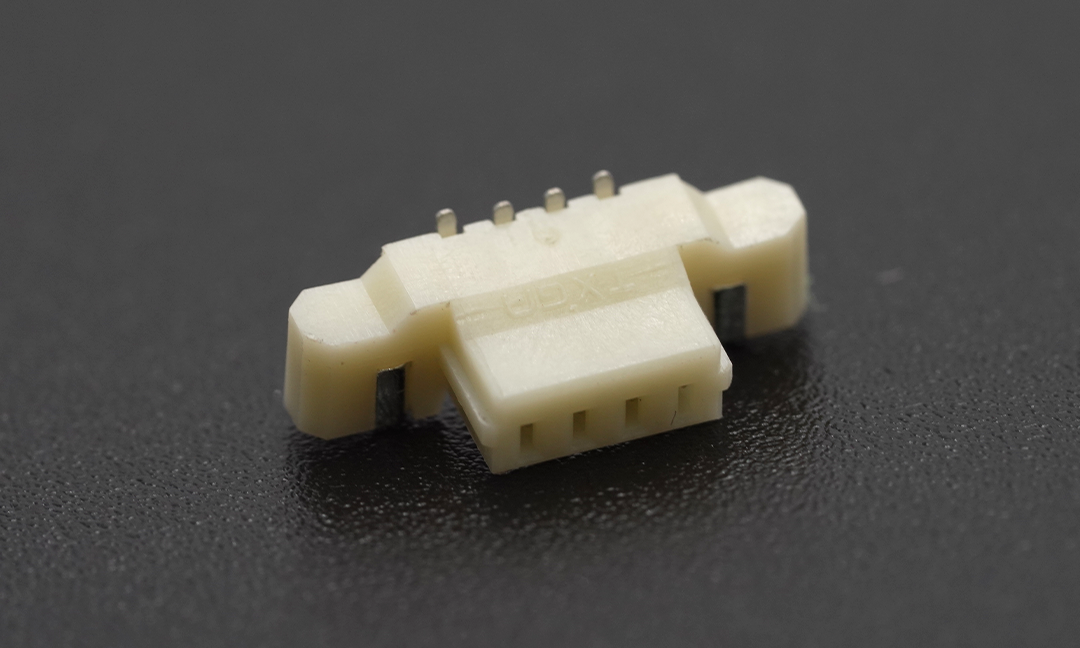

FWF12520-S04S23NAM
Wafer 1.25mm, 4Circuits, 180° Vertical(SMT), PA9T
FWF12520-S04S23NAM Copy
Share this product
Stock(pcs)
1230
Lead time

≦ 1230 In stock

＞ 1230 Estimated delivery date 2025-10-21

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.452606
10 $0.426866
50 $0.375386
100 $0.349647
500 $0.298167
1000 $0.232618
2500 $0.229421
5000 $0.226223
10000 $0.223026
25000 $0.219828

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Socket
Gender
Male
Pitch
1.25mm
Row Option
Single row
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
1A
Voltage(Max)
125V
Contact Resistance
20 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Phosphor bronze
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FWF12520-S04S23NAM.pdf
Receptacle
Wafer 1.25mm 90°Angle 4Circuits (SMT)

FWF12504-S04B24W5M

Wafer 1.25mm 90°Angle 4Circuits (SMT)

 Wafer 1.25mm 180°Vertical 4Circuits (SMT)

FWF12505-S04S24W5M

Wafer 1.25mm 180°Vertical 4Circuits (SMT)

 Wafer 1.25mm 180°Vertical 4Circuits (DIP)

FWF12506-S04S24W5B

Wafer 1.25mm 180°Vertical 4Circuits (DIP)

 Wafer 1.25mm 90°Angle 4Circuits (DIP)

FWF12507-S04B24W5B

Wafer 1.25mm 90°Angle 4Circuits (DIP)
