FWJL23-S08011GN-01
JL23,单头线束,8位,L=110mm
JL23, One-way plug cable, 8Circuits, L=110mm
Product Number：FWJL23-S08011GN-01
Production Status： Active
JL23, One-way plug cable, 8Circuits, L=110mm

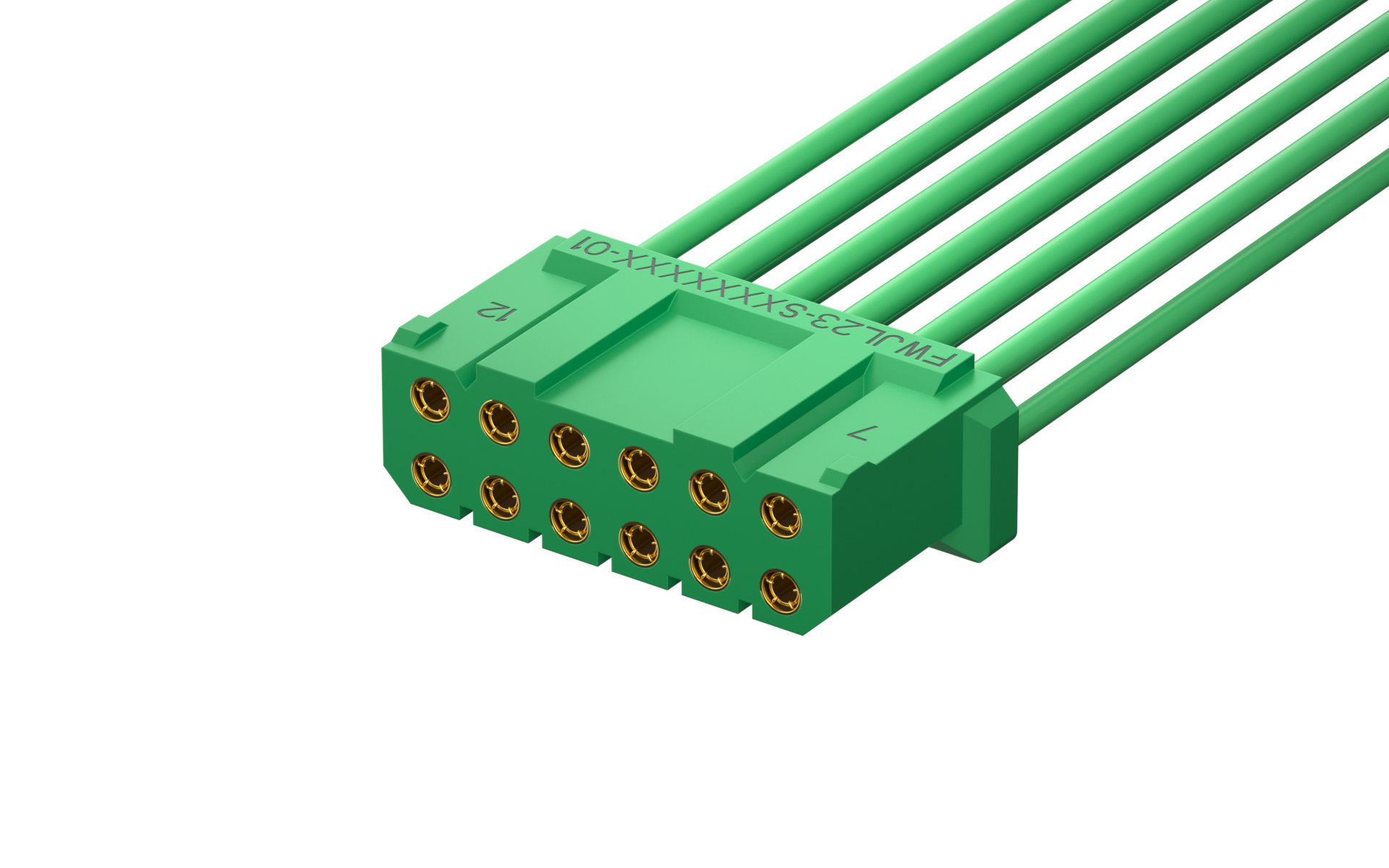

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{78.646226|tradeCurrencySymbol({digits:6})}}
10+ {{74.613086|tradeCurrencySymbol({digits:6})}}
50+ {{63.522616|tradeCurrencySymbol({digits:6})}}
100+ {{59.309381|tradeCurrencySymbol({digits:6})}}
500+ {{48.998913|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 2000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL23
Style
Cable assembly
Cable Category
One-way plug cable
Number of Positions
8Circuits
Colour
Green
Cable Length(mm)
L=110mm
Current(Max)
3A
Voltage(Max)
300V
Operating Temperature Range
-55ºC~+125ºC
Packaging
PE Bag

Product Drawings

FWJL23-SXXXXXXX-01.pdf

3D Drawings

FWJL23-S08011GN-01-REF .STEP
Receptacle
JL23, Socket, 8Circuits, 90°Angle, Through Hole
F0JL23-S08RD000-01
JL23, Socket, 8Circuits, 90°Angle, Through Hole
JL23, Socket, 8Circuits, 180°Vertical, Through Hole
F1JL23-S08SD000-01
JL23, Socket, 8Circuits, 180°Vertical, Through Hole
JL23, Socket, 8Circuits, Vertical(180°), Through hole
F2JL23-S08SD000-01
JL23, Socket, 8Circuits, Vertical(180°), Through hole
