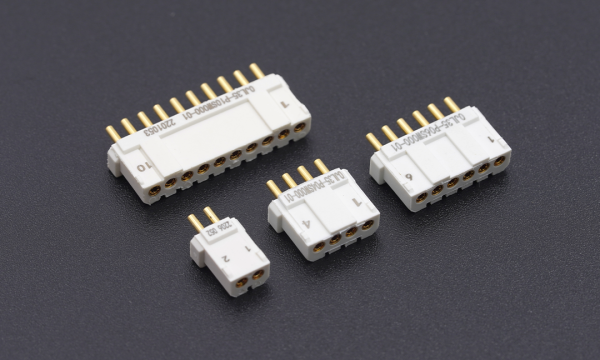

F0JL35-P JL35 Connector Plug 2.54mm 180° Vertical
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

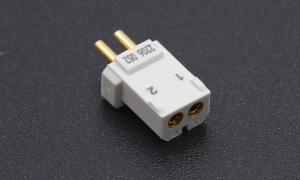

F0JL35-P02SW000-01
JL35 ,Plug ,2Circuits ,180°Vertical ,Soldering
Stock(pcs) 2 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

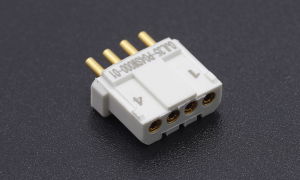

F0JL35-P04SW000-01
JL35 ,Plug ,4Circuits ,180°Vertical ,Soldering
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-20|timezoneDate}} -

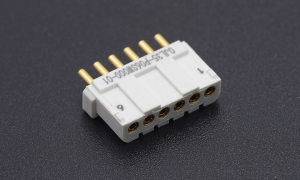

F0JL35-P06SW000-01
JL35 ,Plug ,6Circuits ,180°Vertical ,Soldering
Stock(pcs) 10 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

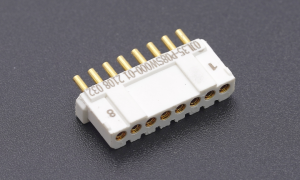

F0JL35-P08SW000-01
JL35 ,Plug ,8Circuits ,180°Vertical ,Soldering
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-20|timezoneDate}} -

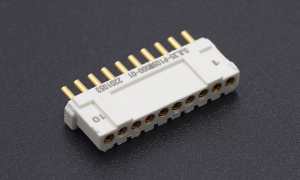

F0JL35-P10SW000-01
JL35 ,Plug ,10Circuits ,180°Vertical ,Soldering
Stock(pcs) 31 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

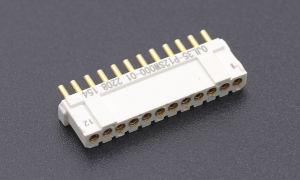

F0JL35-P12SW000-01
JL35 ,Plug ,12Circuits ,180°Vertical ,Soldering
Stock(pcs) 15 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}}
- Category
- CategoryJL35 Connector Plug 180° Vertical
- Circuits2,4,6,8,10,12
- Pitch2.54mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum300V
- Contact Resistance10 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-65℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFXJL35-S,F0JL35-S
- Terminal-
- Assembly shell-
