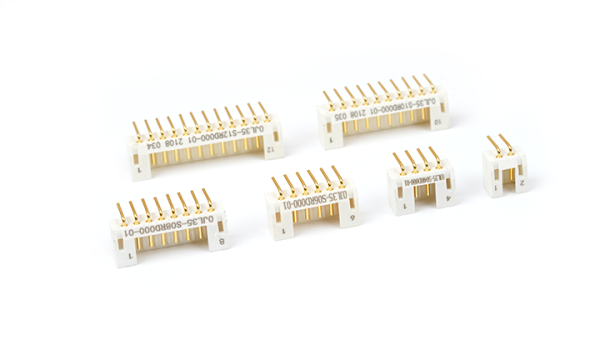

F0JL35-S JL35 Connector Socket 2.54mm 90° Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

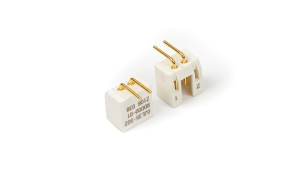

F0JL35-S02RD000-01
JL35 ,Socket ,2Circuits ,90°Angle ,Through Hole
Stock(pcs) 52 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

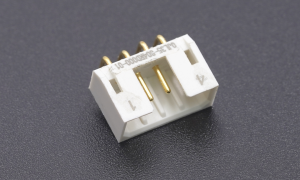

F0JL35-S04RD000-01
JL35 ,Socket ,4Circuits ,90°Angle ,Through Hole
Stock(pcs) 52 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

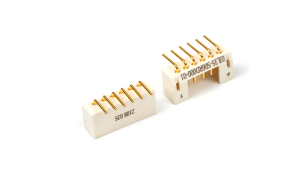

F0JL35-S06RD000-01
JL35 ,Socket ,6Circuits ,90°Angle ,Through Hole
Stock(pcs) 5 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

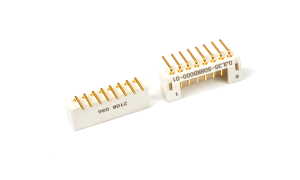

F0JL35-S08RD000-01
JL35 ,Socket ,8Circuits ,90°Angle ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

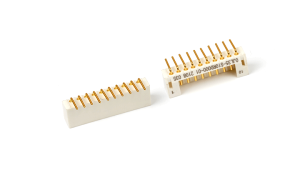

F0JL35-S10RD000-01
JL35 ,Socket ,10Circuits ,90°Angle ,Through Hole
Stock(pcs) 1 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -

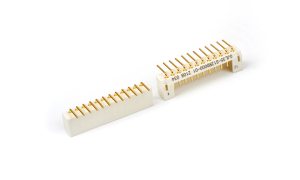

F0JL35-S12RD000-01
JL35 ,Socket ,12Circuits ,90°Angle ,Through Hole
Stock(pcs) 3 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}}
- Category
- CategoryJL35 Connector Socket 90° Angle (DIP)
- Circuits2,4,6,8,10,12
- Pitch2.54mm
- Height5.6mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum300V
- Contact Resistance10 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-65℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- PulgF0JL35-P,FWJL35-S, FWJL35-D
- Receptacle-
- Terminal-
- Assembly shell-
