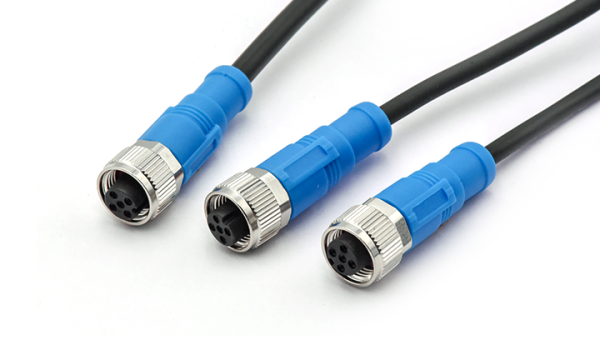

M12 CABLE STRAIGHT ENDED UNSHIELED ,A-CODED ,3Circuits ,PLUG ,0° ,PUR ,2M
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

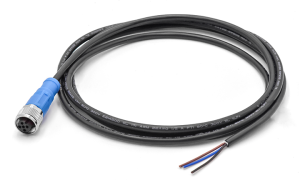

FCA12002-A03P211BK2020000
M12 CABLE STRAIGHT ENDED UNSHIELED ,A-CODED ,3Circuits ,PLUG ,0° ,PUR ,2M
Stock(pcs) 88 Status Active MPQ 100 MOQ 100 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

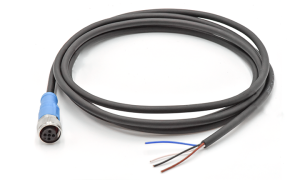

FCA12002-A04P211BK2020000
M12 CABLE STRAIGHT ENDED UNSHIELED ,A-CODED ,4Circuits ,PLUG ,0° ,PUR ,2M
Stock(pcs) 79 Status Active MPQ 100 MOQ 100 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

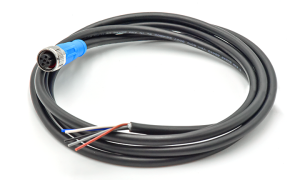

FCA12002-A05P211BK2020000
M12 CABLE STRAIGHT ENDED UNSHIELED ,A-CODED ,5Circuits ,PLUG ,0° ,PUR ,2M
Stock(pcs) 39 Status Active MPQ 100 MOQ 100 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}}
- Category
- CategoryM12 CABLE STRAIGHT ENDED UNSHIELED ,A-CODED
- Circuits3,4 ,5Circuits
- SpecificationM12X1.0
- CodedA-Coded
- Electrical
- Current - Maximum per Contact4.00A
- Voltage - Maximum3Circuits,4Circuits-250V，5Circuits-60V
- Contact Resistance5 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage3Circuits,4Circuits-2500V AC r.m.s,5Circuits-1500V
- mechanical
- Temperature Range operating-25℃+90℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion≥100
- Connector locking sytemM12X1.0
- Material and Plating
- Coupling NutCopper Alloy
- ContactCopper Alloy
- Plating for ContactGold/Sliver
- Housing-MaterialPA
- O-RingRubber
- Over-MoldingTPU/PVC
- Cable JacketPUR/PVC
- Jacket ColorGray/Black
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
