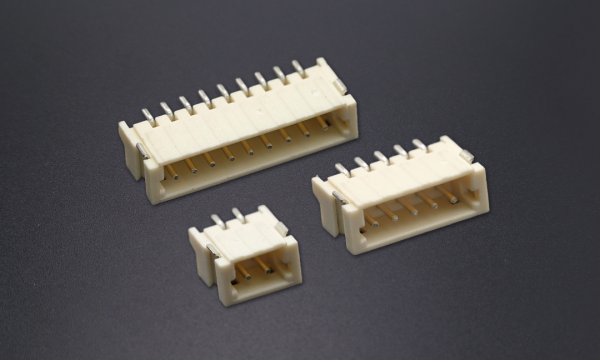

FWF15004 Wafer 1.5mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWF15004-S02B24W5M
Wafer 1.5mm 90°Angle 2Circuits (SMT)
Stock(pcs) 959 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S03B24W5M
Wafer 1.5mm 90°Angle 3Circuits (SMT)
Stock(pcs) 780 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S04B24W5M
Wafer 1.5mm 90°Angle 4Circuits (SMT)
Stock(pcs) 1553 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S05B24W5M
Wafer 1.5mm 90°Angle 5Circuits (SMT)
Stock(pcs) 10 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S06B24W5M
Wafer 1.5mm 90°Angle 6Circuits (SMT)
Stock(pcs) 957 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S07B24W5M
Wafer 1.5mm 90°Angle 7Circuits (SMT)
Stock(pcs) 50 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S08B24W5M
Wafer 1.5mm 90°Angle 8Circuits (SMT)
Stock(pcs) 157 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S09B24W5M
Wafer 1.5mm 90°Angle 9Circuits (SMT)
Stock(pcs) 30 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S10B24W5M
Wafer 1.5mm 90°Angle 10Circuits (SMT)
Stock(pcs) 695 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-13 -
FWF15004-S11B24W5M
Wafer 1.5mm 90°Angle 11Circuits (SMT)
Stock(pcs) 20 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-17 -
FWF15004-S12B24W5M
Wafer 1.5mm 90°Angle 12Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-08-13 -
FWF15004-S13B24W5M
Wafer 1.5mm 90°Angle 13Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-08-17 -
FWF15004-S14B24W5M
Wafer 1.5mm 90°Angle 14Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-08-17 -
FWF15004-S15B24W5M
Wafer 1.5mm 90°Angle 15Circuits (SMT)
Stock(pcs) 0 Status Discontinued MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-08-17
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2-12
- Pitch1.5mm
- Height6.0mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum50V
- Contact Resistance20 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG15001
- Receptacle-
- TerminalFT15001
- Assembly shell-
