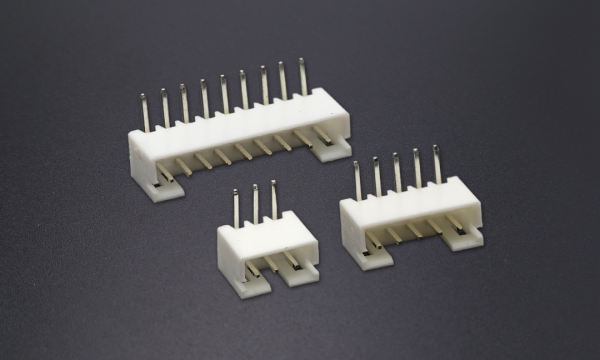

FWF20016 Wafer 2mm 90°Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

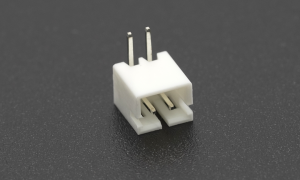

FWF20016-S02B22W1B
Wafer 2mm Bend Single row 2Circuits (DIP)
Stock(pcs) 1295 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

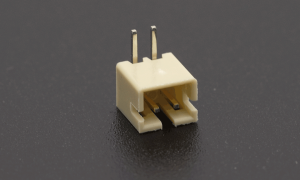

FWF20016-S02B24W5B
Wafer 2mm 90°Angle 2Circuits (DIP)
Stock(pcs) 2780 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

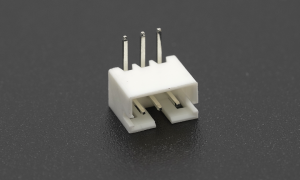

FWF20016-S03B22W1B
Wafer 2mm Bend Single row 3Circuits (DIP)
Stock(pcs) 4963 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

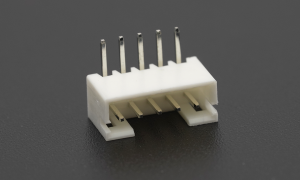

FWF20016-S05B22W1B
Wafer 2mm ,5Circuits ,90° Angle(DIP)
Stock(pcs) 50 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

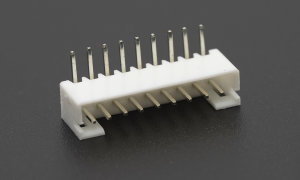

FWF20016-S09B22W1B
Wafer 2mm ,9Circuits ,90° Angle(DIP)
Stock(pcs) 48 Status Active MPQ 500 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -
FWF20016-S16B22W1B
Wafer 2mm ,16Circuits ,90° Angle(DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date {{2026-04-18|timezoneDate}}
- Category
- CategoryWafer 90°Angle (DIP)
- Circuits2-16
- Pitch2.0mm
- Height6.3mm
- Electrical
- Current - Maximum per Contact2.00A
- Voltage - Maximum100V
- Contact Resistance10 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinPA6T UL94V-0/PA66 UL94V-2
- Compatible Parts
- PulgFHG20001
- Receptacle-
- TerminalFT20001
- Assembly shell-
