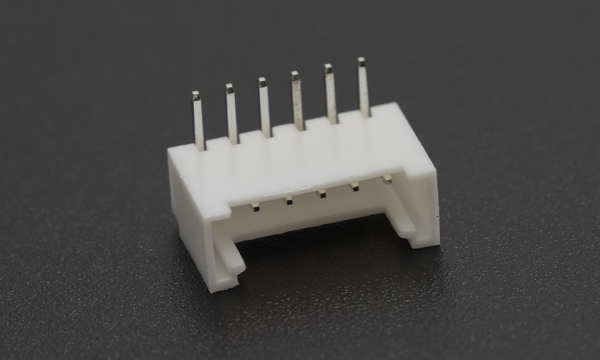

FWF20018 Wafer 2mm 90°Angle (DIP) ZIF
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

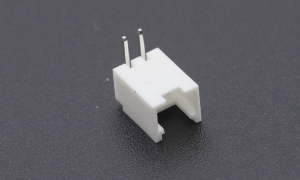

FWF20018-S02B22W1B
Wafer 2mm 90°Angle 2Circuits (DIP) ZIF
Stock(pcs) 20 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-12-30 -
FWF20018-S03B22W1B
Wafer 2mm 90°Angle 3Circuits (DIP) ZIF
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-12-30 -

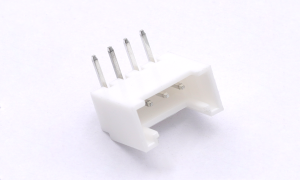

FWF20018-S04B22W1B
Wafer 2mm 90°Angle 4Circuits (DIP) ZIF
Stock(pcs) 780 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-12-30 -
FWF20018-S06B22W1B
Wafer 2mm 90°Angle 6Circuits (DIP) ZIF
Stock(pcs) 2860 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-12-30 -
FWF20018-S07B22W1B
Wafer 2mm 90°Angle 7Circuits (DIP) ZIF
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-12-31
- Category
- CategoryWafer 90°Angle (DIP)
- Circuits2-16
- Pitch2.0mm
- Height8.1mm
- Electrical
- Current - Maximum per Contact2.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold/Tin
- Material - Plating TerminationGold/Tin
- Material - ResinPA66 UL94V-2
- Compatible Parts
- PulgFHG20005
- Receptacle-
- TerminalFT20004
- Assembly shell-
