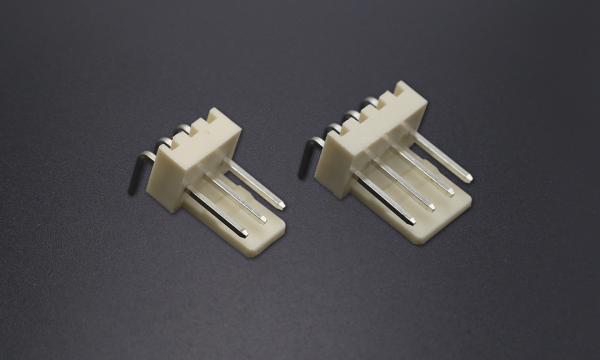

FWF25402 Wafer 2.54mm 90°Angle (DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FWF25402-S02B22W1B-A

Wafer 2.54mm 90°Angle 2Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

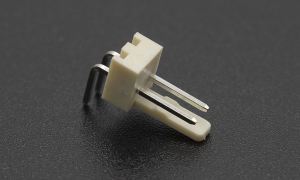

FWF25402-S02B22W5B-A

Wafer 2.54mm 90°Angle 2Circuits (DIP)

Stock(pcs)	127	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

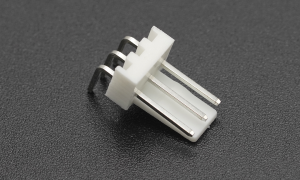

FWF25402-S03B22W1B-A

Wafer 2.54mm 90°Angle 3Circuits (DIP)

Stock(pcs)	1729	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

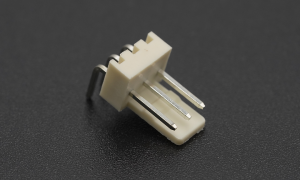

FWF25402-S03B22W5B-A

Wafer 2.54mm 90°Angle 3Circuits (DIP)

Stock(pcs)	577	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

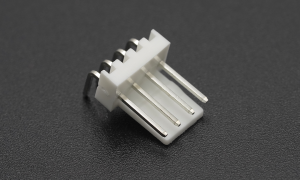

FWF25402-S04B22W1B-A

Wafer 2.54mm 90°Angle 4Circuits (DIP)

Stock(pcs)	287	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

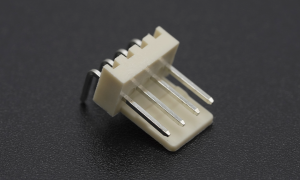

FWF25402-S04B22W5B-A

Wafer 2.54mm 90°Angle 4Circuits (DIP)

Stock(pcs)	1818	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

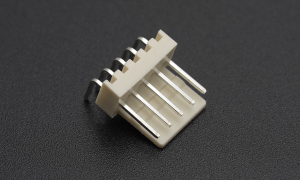

FWF25402-S05B22W1B-A

Wafer 2.54mm 90°Angle 5Circuits (DIP)

Stock(pcs)	650	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

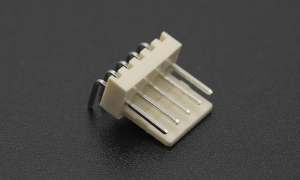

FWF25402-S05B22W5B-A

Wafer 2.54mm 90°Angle 5Circuits (DIP)

Stock(pcs)	698	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S06B22W1B-A

Wafer 2.54mm 90°Angle 6Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

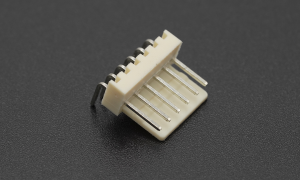

FWF25402-S06B22W5B-A

Wafer 2.54mm 90°Angle 6Circuits (DIP)

Stock(pcs)	270	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S07B22W1B-A

Wafer 2.54mm 90°Angle 7Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

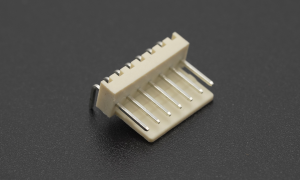

FWF25402-S07B22W5B-A

Wafer 2.54mm 90°Angle 7Circuits (DIP)

Stock(pcs)	298	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S08B22W1B-A

Wafer 2.54mm 90°Angle 8Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

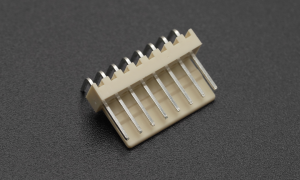

FWF25402-S08B22W5B-A

Wafer 2.54mm 90°Angle 8Circuits (DIP)

Stock(pcs)	55	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S09B22W1B-A

Wafer 2.54mm 90°Angle 9Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

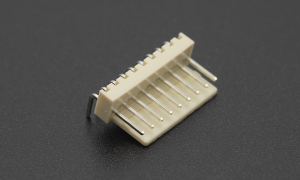

FWF25402-S09B22W5B-A

Wafer 2.54mm 90°Angle 9Circuits (DIP)

Stock(pcs)	10	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S10B22W1B-A

Wafer 2.54mm 90°Angle 10Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

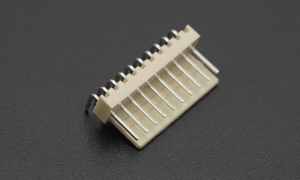

FWF25402-S10B22W5B-A

Wafer 2.54mm 90°Angle 10Circuits (DIP)

Stock(pcs)	30	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S11B22W1B-A

Wafer 2.54mm 90°Angle 11Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FWF25402-S11B22W5B-A

Wafer 2.54mm 90°Angle 11Circuits (DIP)

Stock(pcs)	0	Status	Discontinued
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

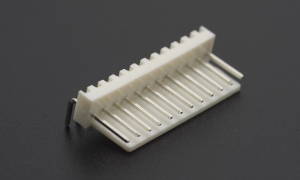

FWF25402-S12B22W1B-A

Wafer 2.54mm 90°Angle 12Circuits (DIP)

Stock(pcs)	330	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25402-S12B22W5B-A

Wafer 2.54mm 90°Angle 12Circuits (DIP)

Stock(pcs)	0	Status	Discontinued
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

FWF25402-S13B22W1B-A

Wafer 2.54mm 90°Angle 13Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FWF25402-S14B22W1B-A

Wafer 2.54mm 90°Angle 14Circuits (DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

Category
CategoryWafer 90°Angle (DIP)
Circuits2-12
Pitch2.54mm
Height11.35mm
Electrical
Current - Maximum per Contact2.50A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage800V AC r.m.s
Temperature Range operating-25℃+85℃
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingTin
Material - Plating TerminationTin
Material - ResinPA66 UL94V-2
Compatible Parts
PulgFHG25401
Receptacle-
TerminalFHG25401
Assembly shell-
