FWF30016 Wafer 3mm 180°Vertical (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

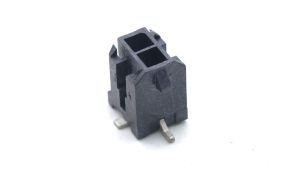

FWF30016-D02S23K6M
Wafer 3mm 180°Vertical 2Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 300 MOQ 1200 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

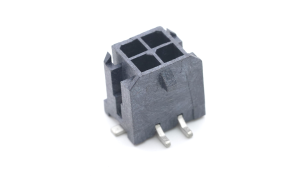

FWF30016-D04S23K6M
Wafer 3mm 180°Vertical 4Circuits (SMT)
Stock(pcs) 180 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

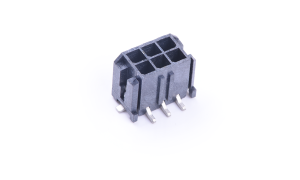

FWF30016-D06S23K6M
Wafer 3mm 180°Vertical 6Circuits (SMT)
Stock(pcs) 130 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

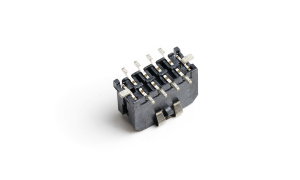

FWF30016-D08S23K6M
Wafer 3mm 180°Vertical 8Circuits (SMT)
Stock(pcs) 30 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

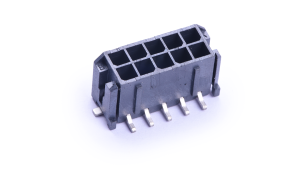

FWF30016-D10S23K6M
Wafer 3mm 180°Vertical 10Circuits (SMT)
Stock(pcs) 100 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

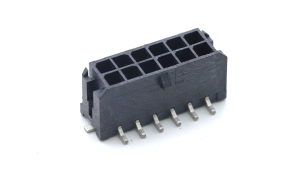

FWF30016-D12S23K6M
Wafer 3mm 180°Vertical 12Circuits (SMT)
Stock(pcs) 11 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits2,4,6,8,10,12,14,16,18,20,22,24
- Pitch3.00mm
- Height9.91mm
- Electrical
- Current - Maximum per Contact5.00A
- Voltage - Maximum250V
- Contact Resistance10 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1500V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- PulgFHG30001
- Receptacle-
- TerminalFT30001
- Assembly shell-
