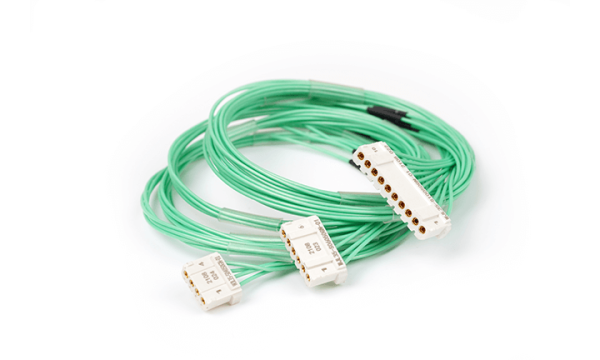

FWJL35-S JL35 One-way plug cable
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FWJL35-S04050GN-01

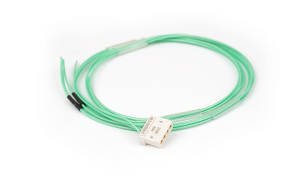

JL35 ,One-way plug cable ,4Circuits ,0.5M
Stock(pcs) 1 Status Active MPQ 200 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -
FWJL35-S06050GN-01

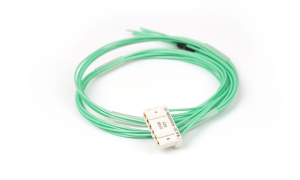

JL35 ,One-way plug cable ,6Circuits ,0.5M
Stock(pcs) 9 Status Active MPQ 200 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}} -
FWJL35-S10050GN-01

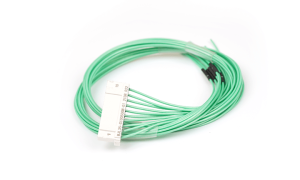

JL35 ,One-way plug cable ,10Circuits ,0.5M
Stock(pcs) 3 Status Active MPQ 200 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-20|timezoneDate}}
- Category
- CategoryJL35 One-way plug cable
- Circuits2,4,6,8,10,12
- Pitch2.54mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum300V
- Contact Resistance10 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-65℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- Pulg-
- ReceptacleFXJL35-S,F0JL35-S
- Terminal-
- Assembly shell-
