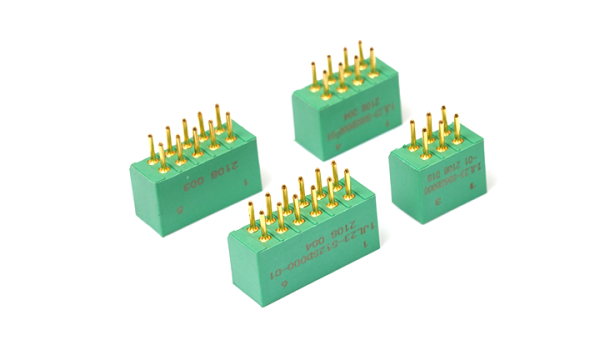

FXJL23-S JL23 Connector Socket 2.54mm 180° Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

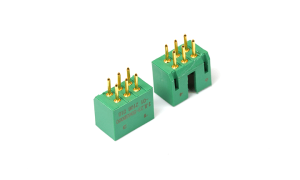

F1JL23-S06SD000-01
JL23 ,Socket ,6Circuits ,180°Vertical ,Through Hole
Stock(pcs) 46 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

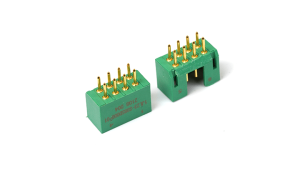

F1JL23-S08SD000-01
JL23 ,Socket ,8Circuits ,180°Vertical ,Through Hole
Stock(pcs) 16 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

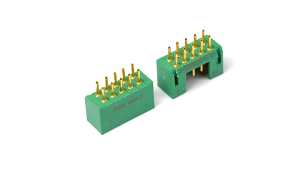

F1JL23-S10SD000-01
JL23 ,Socket ,10Circuits ,180°Vertical ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

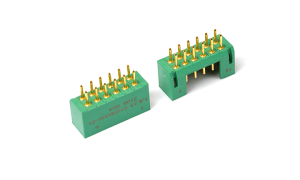

F1JL23-S12SD000-01
JL23 ,Socket ,12Circuits ,180°Vertical ,Through Hole
Stock(pcs) 6 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL23-S14SD000-01
JL23 ,Socket ,14Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL23-S16SD000-01
JL23 ,Socket ,16Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL23-S18SD000-01
JL23 ,Socket ,18Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL23-S20SD000-01
JL23 ,Socket ,20Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL23-S22SD000-01
JL23 ,Socket ,22Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

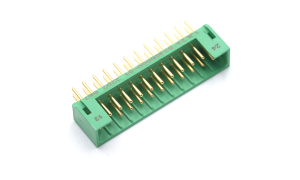

F1JL23-S24SD000-01
JL23 ,Socket ,24Circuits ,180°Vertical ,Through Hole
Stock(pcs) 15 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

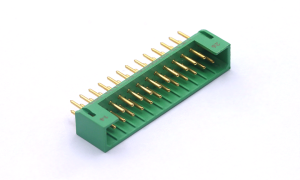

F1JL23-S26SD000-01
JL23 ,Socket ,26Circuits ,180°Vertical ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F2JL23-S06SD000-01
JL23 ,Socket ,6Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F3JL23-S06SD000-01
JL23 ,Socket ,6Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryJL23 Connector Socket 180° Vertical (DIP)
- Circuits6-26
- Pitch2.54mm
- Height8.4mm
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum300V
- Contact Resistance10 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-65℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- PulgF0JL23-P,FWJL23-S,FWJL23-D
- Receptacle-
- Terminal-
- Assembly shell-
