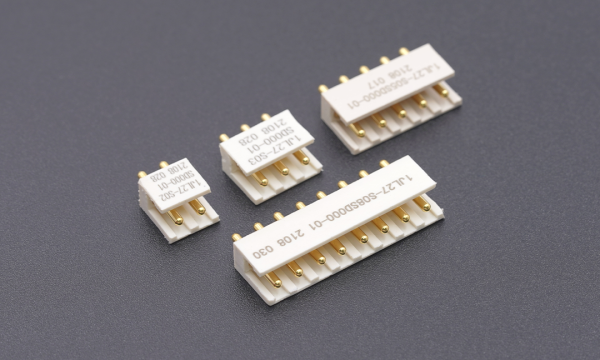

FXJL27-S-S JL27 Connector Socket 3.96mm 180° Vertical (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

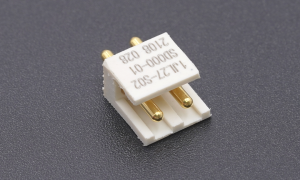

F1JL27-S02SD000-01
JL27 ,Socket ,2Circuits ,180°Vertical ,Through Hole
Stock(pcs) 1 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

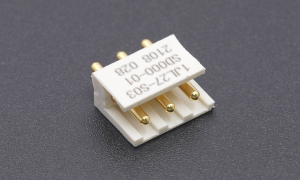

F1JL27-S03SD000-01
JL27 ,Socket ,3Circuits ,180°Vertical ,Through Hole
Stock(pcs) 47 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

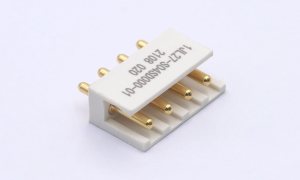

F1JL27-S04SD000-01
JL27 ,Socket ,4Circuits ,180°Vertical ,Through Hole
Stock(pcs) 26 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

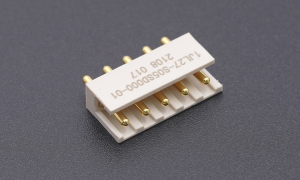

F1JL27-S05SD000-01
JL27 ,Socket ,5Circuits ,180°Vertical ,Through Hole
Stock(pcs) 48 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

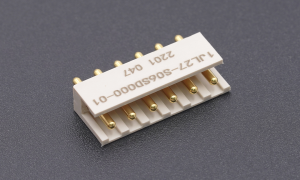

F1JL27-S06SD000-01
JL27 ,Socket ,6Circuits ,180°Vertical ,Through Hole
Stock(pcs) 20 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

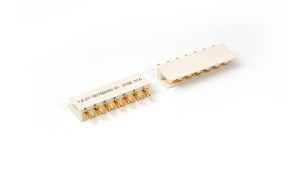

F1JL27-S07SD000-01
JL27 ,Socket ,7Circuits ,180°Vertical ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

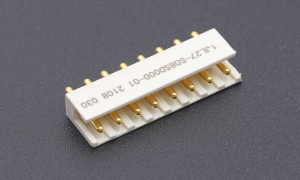

F1JL27-S08SD000-01
JL27 ,Socket ,8Circuits ,180°Vertical ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

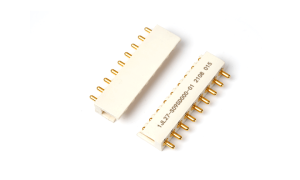

F1JL27-S09SD000-01
JL27 ,Socket ,9Circuits ,180°Vertical ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL27-S10SD000-01
JL27 ,Socket ,10Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S11SD000-01
JL27 ,Socket ,11Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S12SD000-01
JL27 ,Socket ,12Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S13SD000-01
JL27 ,Socket ,13Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S14SD000-01
JL27 ,Socket ,14Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S15SD000-01
JL27 ,Socket ,15Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S16SD000-01
JL27 ,Socket ,16Circuits ,180°Vertical ,Through Hole
Stock(pcs) 10 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL27-S17SD000-01
JL27 ,Socket ,17Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S18SD000-01
JL27 ,Socket ,18Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S19SD000-01
JL27 ,Socket ,19Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S20SD000-01
JL27 ,Socket ,20Circuits ,180°Vertical ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryJL27 Connector Socket 180° Vertical (DIP)
- Circuits2-20
- Pitch3.96mm
- Height9.9mm
- Electrical
- Current - Maximum per Contact13.00A
- Voltage - Maximum250V
- Contact Resistance3.8 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1500V AC r.m.s
- Temperature Range operating-55℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- PulgF0JL27-P, FWJL27-S,FWJL27-D
- Receptacle-
- Terminal-
- Assembly shell-
