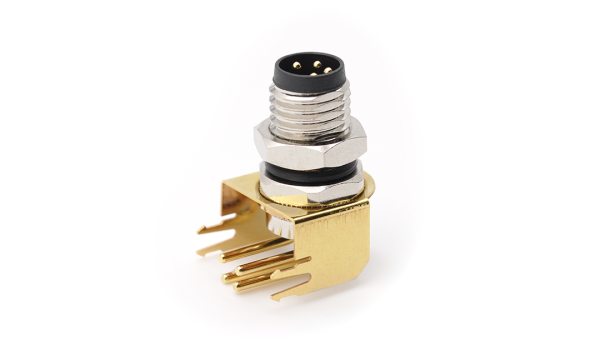

M8X1.0 male Socket ,90° Angle ,Through Hole
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
F001M8-SA02PRD0-01
M8X1.0 Socket ,A-Coded ,2Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}} -
F001M8-SA03PRD0-01
M8X1.0 Socket ,A-Coded ,3Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}} -
F001M8-SA04PRD0-01
M8X1.0 Socket ,A-Coded ,4Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}} -
F001M8-SA06PRD0-01
M8X1.0 Socket ,A-Coded ,6Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}} -
F001M8-SA08PRD0-01
M8X1.0 Socket ,A-Coded ,8Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}} -
F001M8-SB05PRD0-01
M8X1.0 Socket ,B-Coded ,5Circuits ,Pin ,90° Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1 MOQ 500 Lead time Estimated delivery date {{2026-04-17|timezoneDate}}
- Category
- TypeM8x1.0 male sockeet,RA SHIELDED
- Circuits2,3,4 ,5,6,8
- SpecificationM8x1.0
- CodedA/B/D-Coded
- Electrical
- Current - Maximum per Contact4.00A
- Wire Size (AWG)-
- Voltage - Maximum60V
- Contact Resistance8mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage800V AC r.m.s
- mechanical
- Temperature Range operating-40℃~+85℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion≥100
- Connector locking sytemM8X1.0
- Wiring typeThrough Hole
- Material and Plating
- Coupling NutBrass
- shellBrass
- ContactCopper Alloy
- Plating for ContactGold
- Housing-MaterialPA
- O-ringNBR
- Compatible Parts
- PulgFCC0M8
