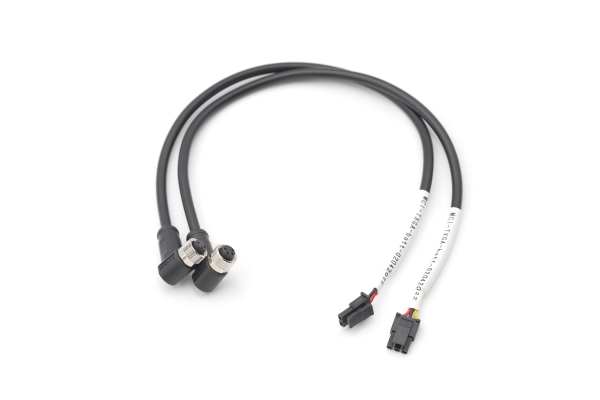

FCC0M8 M8 CABLE FEMALE STRAIGHT SINGLE ENDED
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

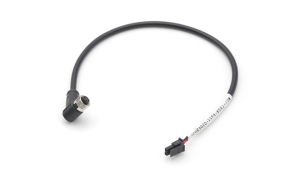

FCC0M8-A0302003-01
M8X1.0 Plug ,A-Coded ,3Circuits ,0.3M ,Without shield ,to housing 30002
Stock(pcs) 0 Status Active MPQ 1 MOQ 1 Lead time Estimated delivery date {{2026-04-18|timezoneDate}} -

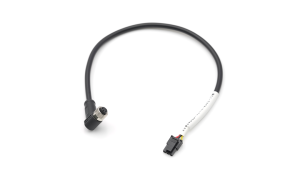

FCC0M8-A0402003-01
M8X1.0 Plug ,A-Coded ,4Circuits ,0.3M ,Without shield ,to housing 30002
Stock(pcs) 0 Status Active MPQ 1 MOQ 1 Lead time Estimated delivery date {{2026-04-18|timezoneDate}}
- Category
- CategoryM8 CABLE FEMALE STRAIGHT SINGLE ENDED
- Circuits3,4
- SpecificationM8X1.0
- CodedA-Coded
- Electrical
- Current - Maximum per Contact4.00A
- Voltage - Maximum60V
- Contact Resistance5 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage800V AC r.m.s
- Temperature Range operating-40℃+85℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion>100
- Connector locking sytemM8X1.0
- Material and Plating
- Coupling NutCopper Alloy
- ContactCopper Alloy
- Plating for ContactGold/Sliver
- Housing-MaterialPA
- O-ringRubber
- Over-MoldingPVC
- Cable JacketPVC
- Jacket ColorBlack
- Compatible Parts
- Pulg-
- ReceptacleF001M8
- Terminal-
- Assembly shell-
