FBH25405 Ejector Box Header 2.54mm 90°(DIP)_TXGA Industrial Electronic Co., Ltd.

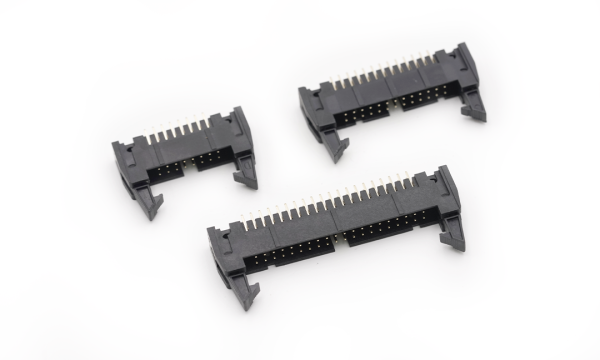

FBH25405 Ejector Box Header 2.54mm 90°(DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FBH25405-D06B1001K6K

Ejector Box Header 2.54mm 90°Angle 6Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D06B1004K6K

Ejector Box Header 2.54mm 90°Angle 6Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D08B1001K6K

Ejector Box Header 2.54mm 90°Angle 8Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D08B1004K6K

Ejector Box Header 2.54mm 90°Angle 8Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

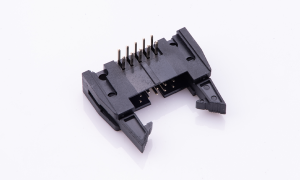

FBH25405-D10B1001K6K

Ejector Box Header 2.54mm 90°Angle 10Circuits(DIP)

Stock(pcs)	550	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D10B1004K6K

Ejector Box Header 2.54mm 90°Angle 10Circuits(DIP)

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D12B1001K6K

Ejector Box Header 2.54mm 90°Angle 12Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D12B1004K6K

Ejector Box Header 2.54mm 90°Angle 12Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

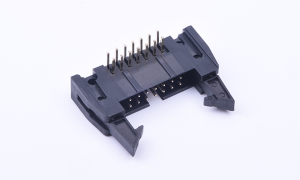

FBH25405-D14B1001K6K

Ejector Box Header 2.54mm 90°Angle 14Circuits(DIP)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D14B1004K6K

Ejector Box Header 2.54mm 90°Angle 14Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D16B1001K6K

Ejector Box Header 2.54mm 90°Angle 16Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

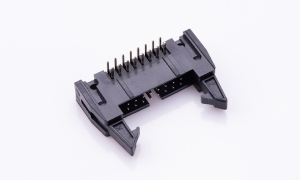

FBH25405-D16B1004K6K

Ejector Box Header 2.54mm 90°Angle 16Circuits(DIP)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D18B1001K6K

Ejector Box Header 2.54mm 90°Angle 18Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D18B1004K6K

Ejector Box Header 2.54mm 90°Angle 18Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D20B1001K6K

Ejector Box Header 2.54mm 90°Angle 20Circuits(DIP)

Stock(pcs)	124	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

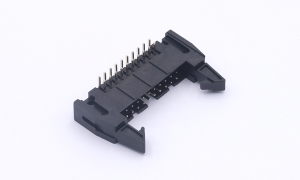

FBH25405-D20B1004K6K

Ejector Box Header 2.54mm 90°Angle 20Circuits(DIP)

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D20B1031K6K

Ejector Box Header 2.54mm 90°Angle 20Circuits(DIP)(3μ")

Stock(pcs)	0	Status	Active
MPQ	2000	MOQ	1000
Lead time	Estimated delivery date 2025-08-20

FBH25405-D24B1001K6K

Ejector Box Header 2.54mm 90°Angle 24Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D24B1004K6K

Ejector Box Header 2.54mm 90°Angle 24Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

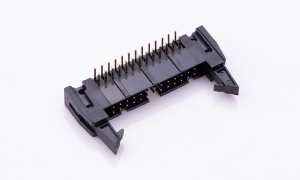

FBH25405-D26B1001K6K

Ejector Box Header 2.54mm 90°Angle 26Circuits(DIP)

Stock(pcs)	21	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D26B1004K6K

Ejector Box Header 2.54mm 90°Angle 26Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

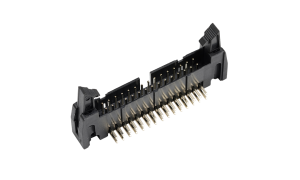

FBH25405-D30B1001K6K

Ejector Box Header 2.54mm 90°Angle 30Circuits(DIP)

Stock(pcs)	4	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D30B1004K6K

Ejector Box Header 2.54mm 90°Angle 30Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

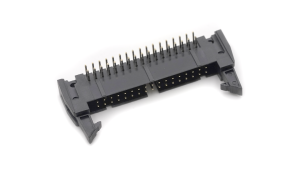

FBH25405-D34B1001K6K

Ejector Box Header 2.54mm 90°Angle 34Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D34B1004K6K

Ejector Box Header 2.54mm 90°Angle 34Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D34B1014K6K

Ejector Box Header 2.54mm 90°Angle 34Circuits(DIP)(1μ")

Stock(pcs)	0	Status	Active
MPQ	72	MOQ	864
Lead time	Estimated delivery date 2025-08-21

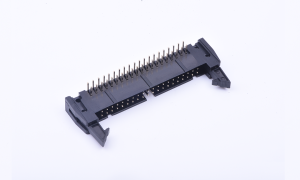

FBH25405-D40B1001K6K

Ejector Box Header 2.54mm 90°Angle 40Circuits(DIP)

Stock(pcs)	18	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

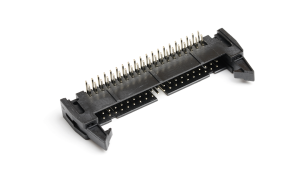

FBH25405-D40B1004K6K

Ejector Box Header 2.54mm 90°Angle 40Circuits(DIP)

Stock(pcs)	235	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

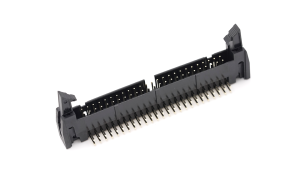

FBH25405-D50B1001K6K

Ejector Box Header 2.54mm 90°Angle 50Circuits(DIP)

Stock(pcs)	50	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D50B1004K6K

Ejector Box Header 2.54mm 90°Angle 50Circuits(DIP)

Stock(pcs)	38	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

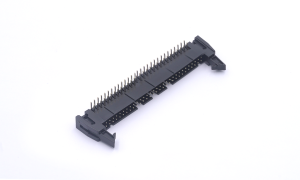

FBH25405-D60B1001K6K

Ejector Box Header 2.54mm 90°Angle 60Circuits(DIP)

Stock(pcs)	10	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

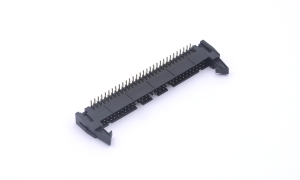

FBH25405-D60B1004K6K

Ejector Box Header 2.54mm 90°Angle 60Circuits(DIP)

Stock(pcs)	40	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

FBH25405-D64B1001K6K

Ejector Box Header 2.54mm 90°Angle 64Circuits(DIP)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-08-16

FBH25405-D64B1004K6K

Ejector Box Header 2.54mm 90°Angle 64Circuits(DIP)

Stock(pcs)	8	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-08-16

Category
CategoryEjector Box Header 2mm 90°Angle(DIP)
Circuits6,8,10,12,14,16,18,20,24,26,30,34,40,50,60,64
Pitch2.54mm
Electrical
Current - Maximum per Contact3.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-40ºC~+105ºC
Material and Plating
Material-MetalBrass
Material - Plating MatingGold
Material - Plating TerminationGold/Tin
Material - ResinPA6T/PBT UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

FBH25405 Series.pdf
