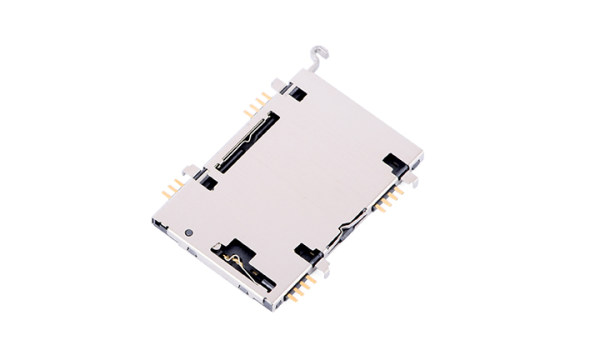

FCD907 Nano SIM+Micro SD card connector(H1.65mm)(Push-pull)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryNano SIM+Micro SD card connector(Push-pull)(SMT)
- Height1.65mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum100V
- Contact Resistance100 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalCopper alloy
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
