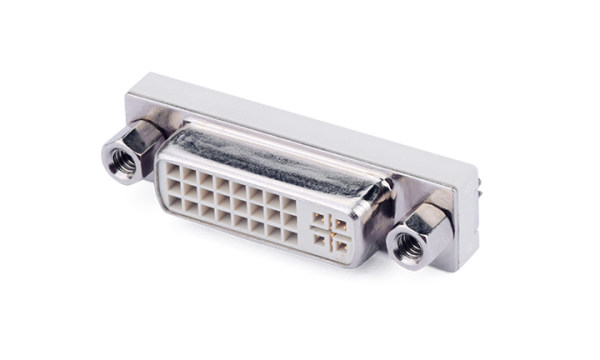

FDI2411 DVI Female (24+5)Circuits 180° Vertical (DIP) White
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- Category
- Circuits24+5
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum40V
- Contact Resistance20 mΩ Max
- Insulation Resistance1000MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-55ºC~+85ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPA66 UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
