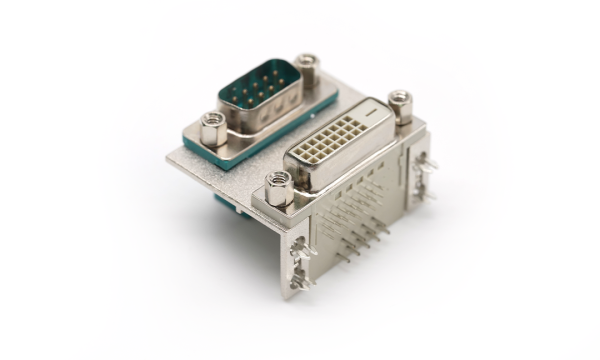

FDI3301 D-SUB Connector Male(9)Circuits+DVI Connector Female (24+1)Circuits
-
EU RoHS
Dose not contain REACH SVHC(1907/2006/EC) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

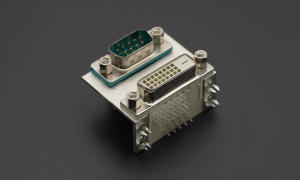

FDI3301-MFDB300GWK
D-SUB Connector Male 9 Circuits+DVI Connector Female (24+1)Circuits
Stock(pcs) 29 Status Active MPQ 50 MOQ 5000 Lead time Estimated delivery date when out of stock 2025-10-15 -
FDI3301-MFDB300GWKA
D-SUB Connector Male 9 Circuits+DVI Connector Female (24+1)Circuits
Stock(pcs) 0 Status Active MPQ 35 MOQ 5000 Lead time Estimated delivery date 2025-10-15 -
FDI3301-MFDB300GWKB
D-SUB Connector Male 9 Circuits+DVI Connector Female (24+1)Circuits
Stock(pcs) 0 Status Active MPQ 35 MOQ 5000 Lead time Estimated delivery date 2025-10-15
- Category
- CategoryD-SUB Connector Male(9)Circuits+DVI Connector Female (24+1)Circuits
- Circuits9+(24+1)
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance30 mΩ Max
- Insulation Resistance1000MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-20ºC~+85ºC
- Material and Plating
- Material-MetalCopper alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
