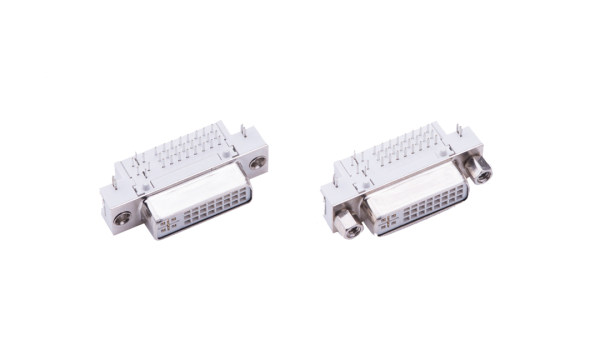

FDI2401 DVI Connector Female (24+5)Circuits 90°Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

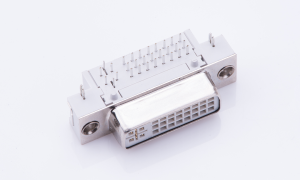

FDI2401-F0DB300W1K-B
DVI Female (24+5)Circuits 90° Angle (DIP) White
Stock(pcs) 29 Status Active MPQ 1 MOQ 1 Lead time Estimated delivery date when out of stock 2025-10-14 -

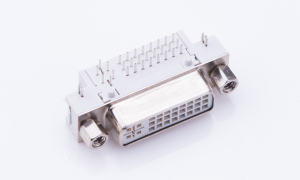

FDI2401-F0DB300W1K-C
DVI Female (24+5)Pin DIP 90° White
Stock(pcs) 0 Status Active MPQ 50 MOQ 5000 Lead time Estimated delivery date 2025-10-10 -
FDI2401-F0DB303W1K-A
DVI Female (24+5)Circuits 90° Angle (DIP) White
Stock(pcs) 0 Status Discontinued MPQ 50 MOQ 1 Lead time Estimated delivery date 2025-10-12
- Category
- CategoryDVI Connector 90°Angle Female (DIP)
- Circuits24+5
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum250V
- Contact Resistance30 mΩ Max
- Insulation Resistance1000MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-20ºC~+85ºC
- Material and Plating
- Material-MetalCopper alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
