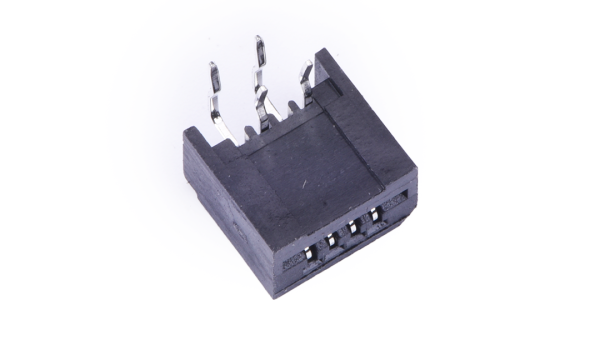

FFC12516 FPC/FFC connector 1.25mm(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryFPC/FFC Connector（90°DIP）
- Circuits3-30
- Pitch1.25mm
- Contact directionSingle contact
- Height5.0mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum50V
- Contact Resistance30 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
