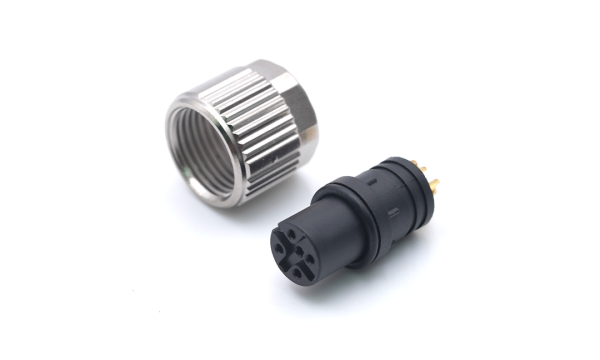

M12X1.0 female Plug Contact,Plating Au 3U''
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryM12X1.0 female Plug Contact,Plating Au 3U''
- Circuits2,3,4 ,5,8,12Circuits
- SpecificationM12X1.0
- CodedA/B/D Coded
- Electrical
- Current - Maximum per Contact4.00A
- Voltage - Maximum250V
- Contact Resistance5 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage2500V
- Mechanical
- Temperature Range operating-40℃+85℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion≥100
- Connector locking sytemM12X1.0
- Material and Plating
- Coupling Nutzinc die
- ContactCopper Alloy
- Plating for ContactGold
- Housing-MaterialPA
- Compatible Parts
- PulgFCA12002,FCA12004,FCQ12002,FCQ12004
- Receptacle-
