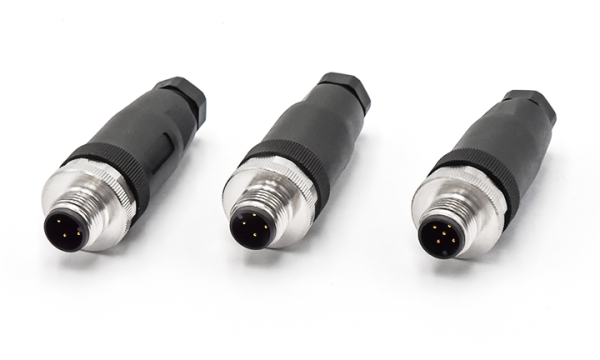

M12X1.0 MALE A CODE,ST UNSHIELDED SCREW TYPE
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

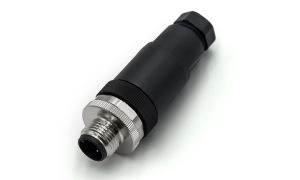

FCQ12001-A03P2211BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,3Circuits ,PG7
Stock(pcs) 5 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

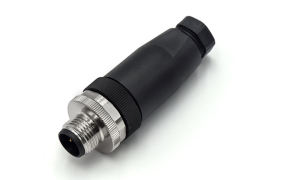

FCQ12001-A03P2212BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,A-CODED ,3Circuits ,PG9
Stock(pcs) 49 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

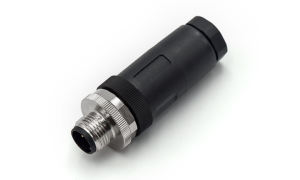

FCQ12001-A04P2211BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,4Circuits ,PG7
Stock(pcs) 30 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

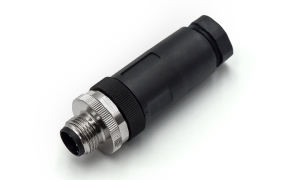

FCQ12001-A04P2212BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,4Circuits ,PG9
Stock(pcs) 49 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

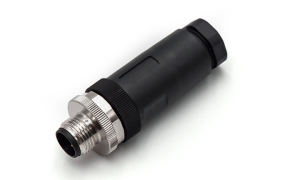

FCQ12001-A05P2211BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,5Circuits ,PG7
Stock(pcs) 37 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

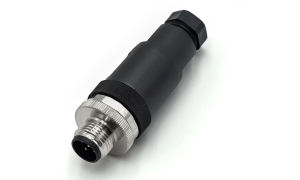

FCQ12001-A05P2212BKB000
M12X1.0 MALE A CODE,ST UNSHIELDED SCREW ,A-CODED ,5Circuits ,PG9
Stock(pcs) 49 Status Active MPQ 50 MOQ 50 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}}
- Category
- CategoryM12X1.0 MALE A CODE,ST UNSHIELDED SCREW TYPE
- Circuits2,3,4 ,5,8Circuits
- SpecificationM12X1.0
- CodedA-Coded
- Electrical
- Current - Maximum per Contact2,3,4,5Circuits 4A,8Circuits 2A
- Wire Size (AWG)18-24AWG
- Voltage - Maximum2Circuits,3Circuits,4Circuits-250V/ 5Circuits-60V/ 8Circuits-30V
- Contact Resistance8 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage3Circuits,4Circuits-2500V AC r.m.s,5Circuits-1500V,8Circuits-800V
- mechanical
- Temperature Range operating-40℃+85℃
- Polletion Degree3
- Overvoltage CategoryII
- Material GroupII
- Degree of ProtectionIP67
- Mechanical opertion≥100
- Connector locking sytemM12X1.0
- Cable OutletPG7(φ4-6mm），PG9(φ6-8mm）
- Material and Plating
- Coupling NutBrass
- ContactCopper Alloy
- Plating for ContactGold/Sliver
- Housing-MaterialPA
- Housing BodyPBT+GF
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
