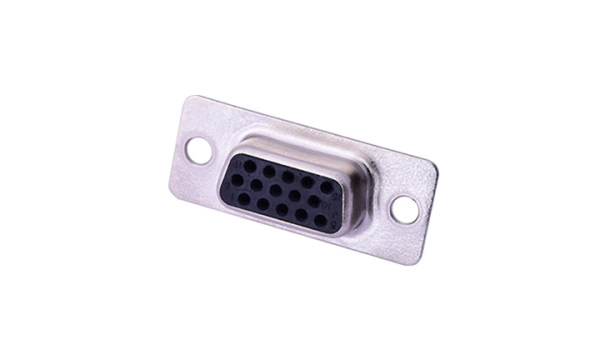

FDB1509 D-SUB Female 15Circuits
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FDB1509-F0WS300K6KA
D-SUB Female 15Circuits(Black)
Stock(pcs) 15 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16 -
FDB1509-F0WS300K6KB
D-SUB Female 15Circuits(Black)
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-08-16 -
FDB1509-F0WS300K6KC
D-SUB Female 15Circuits(Black)
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-08-20 -

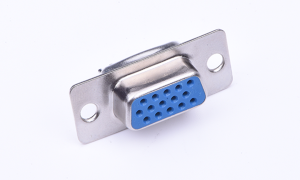

FDB1509-F0WS300U1KA
D-SUB Female 15Circuits(Blue)
Stock(pcs) 67 Status Active MPQ 1 MOQ 1 Lead time Estimated delivery date when out of stock 2025-08-16
- Category
- CategoryD-SUB Female（Welding）
- Circuits15
- Row optionTriple Row
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance25 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55ºC~+105ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
