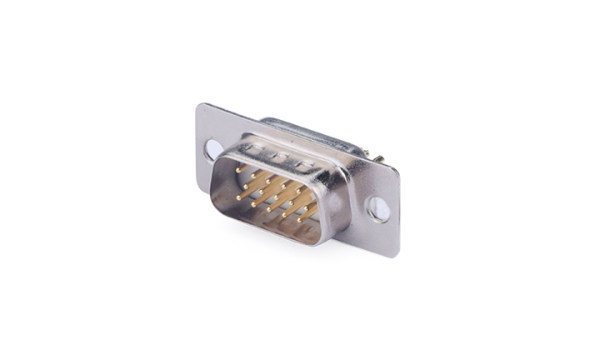

FDM1511-M0 Machined pin D-SUB Male 15Circuits
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

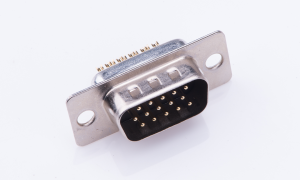

FDM1511-M0WS101K6K
Machined pin D-SUB Male 15Circuits
Stock(pcs) 163 Status Active MPQ 50 MOQ 500 Lead time Estimated delivery date when out of stock 2025-08-16 -

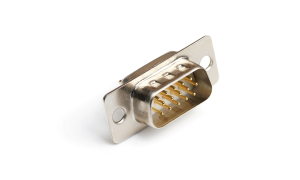

FDM1511-M0WS101W1K
Machined pin D-SUB Male 15Circuits
Stock(pcs) 0 Status Active MPQ 50 MOQ 500 Lead time Estimated delivery date 2025-08-16 -

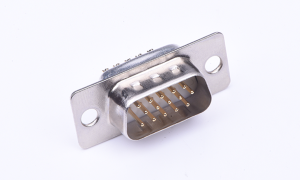

FDM1511-M0WS103W1K
Machined pin D-SUB Male 15Circuits
Stock(pcs) 1 Status Active MPQ 50 MOQ 500 Lead time Estimated delivery date when out of stock 2025-08-16
- Category
- CategoryMachined pin D-SUB Male ( Welding)
- Circuits15
- Row optionTriple Row
- Electrical
- Current - Maximum per Contact5.00A
- Voltage - Maximum300V
- Contact Resistance30mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55ºC~+105ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinFilled Thermoplastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
