FFH12716 Female Header 1.27mm Double Row (SMT)_TXGA Industrial Electronic Co., Ltd.

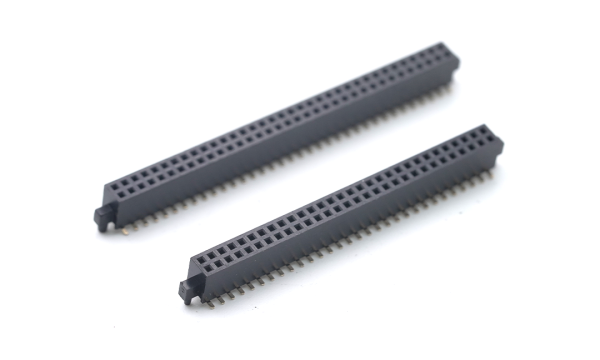

FFH12716 Female Header 1.27mm Double Row (SMT)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FFH12716-D100S1004K6K

Female Header 1.27mm 180°Vertical Double Row 100Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-14

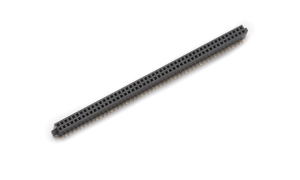

FFH12716-D100S1004K6M

Female Header 1.27mm ,Double row ,100Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	25	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-15

FFH12716-D10S1004K6K

Female Header 1.27mm ,Double row ,10Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-14

FFH12716-D10S1004K6M

Female Header 1.27mm ,Double row ,10Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	85	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D12S1004K6M

Female Header 1.27mm ,Double row,12Circuits,180° Vertical(SMT) ,Gold flash ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D14S1004K6M

Female Header 1.27mm ,Double row ,14Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D14S1014K6M

Female Header 1.27mm ,Double row ,14Circuits ,180° Vertical(SMT) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D16S1004K6M

Female Header 1.27mm 180°Vertical Double Row 16Circuits(SMT)

Stock(pcs)	20	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-10

FFH12716-D16S1014K6M

Female Header 1.27mm ,Double row ,16Circuits ,180° Vertical(SMT) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D20S1004K6K

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-10

FFH12716-D20S1004K6M

Female Header 1.27mm 180°Vertical Double Row 20Circuits(SMT) 　

Stock(pcs)	5	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D24S1004K6M

Female Header 1.27mm 180°Vertical Double Row 24Circuits(SMT) 　

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-14

FFH12716-D24S1014K6M

Female Header 1.27mm ,Double row ,24Circuits ,180° Vertical(SMT) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D30S1004K6M

Female Header 1.27mm 180°Vertical Double Row 30Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-14

FFH12716-D32S1004K6M

Female Header 1.27mm ,Double row ,32Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	23	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D40S1004K6K

Female Header 1.27mm ,Double row ,40Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-14

FFH12716-D40S1014K6M

Female Header 1.27mm ,Double row ,40Circuits ,180° Vertical(SMT) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

FFH12716-D44S1004K6K

Female Header 1.27mm 180°Vertical Double Row 44Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-10

FFH12716-D50S1004K6K

Female Header 1.27mm 180°Vertical Double Row 50Circuits(SMT)

Stock(pcs)	34	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-10

FFH12716-D50S1004K6M

Female Header 1.27mm 180°Vertical Double Row 50Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-10

FFH12716-D56S1004K6K

Female Header 1.27mm 180°Vertical Double Row 56Circuits(SMT)

Stock(pcs)	30	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-10

FFH12716-D60S1004K6K

Female Header 1.27mm ,Double row ,60Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	18	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D60S1004K6M

Female Header 1.27mm ,Double row ,60Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	30	Status	Active
MPQ	800	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-15

FFH12716-D64S1004K6M

Female Header 1.27mm ,Double row ,64Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

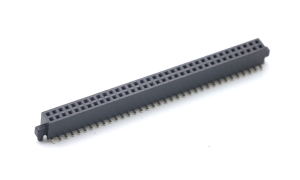

FFH12716-D70S1004K6M1

Female Header 1.27mm ,Double row ,70Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	6	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D80S1004K6M1

Female Header 1.27mm ,Double row ,80Circuits ,180° Vertical(SMT) ,PA6T

Stock(pcs)	53	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-14

FFH12716-D80S1014K6M

Female Header 1.27mm ,Double row ,80Circuits ,180° Vertical(SMT) ,1μ" ,PA6T

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-15

Category
CategoryFemale header-PCB socket Pitch：1.27mm （SMT）
Circuits8-80
Pitch1.27mm
Entry Angle180° Vertical
Color - ResinBlack
Electrical
Current - Maximum per Contact1.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance500 MΩ Min
Withstanding Voltage100V AC r.m.s
Temperature Range operating-25ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingGold
Material - Plating TerminationGold/Tin
Material - ResinPA6T UL94V-0
Compatible Parts
Pulg-
ReceptacleFBH12701,FBH12702,FBH12703,FBH12707,FBH12708,FBH12714,FBH12718
Terminal-
Assembly shell-

Sales Drawings

FFH12716 series.pdf
