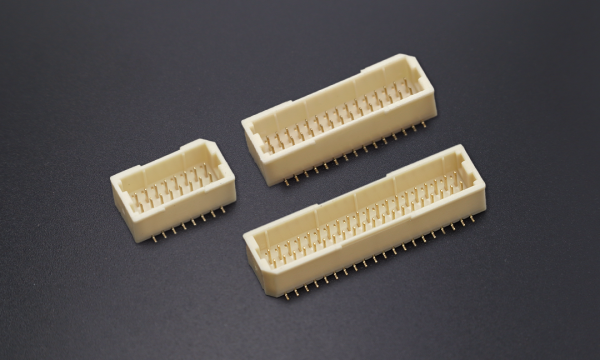

FWF10003 Wafer 1mm 180°Vertical (SMT)(Gold-Plated)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

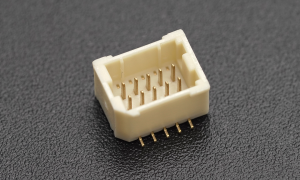

FWF10003-D10S14W5M
Wafer 1mm 180°Vertical 10Circuits (SMT)(Gold-Plated)
Stock(pcs) 678 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

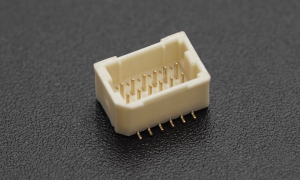

FWF10003-D12S14W5M
Wafer 1mm 180°Vertical 12Circuits (SMT)(Gold-Plated)
Stock(pcs) 1609 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

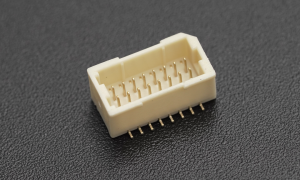

FWF10003-D16S14W5M
Wafer 1mm 180°Vertical 16Circuits (SMT)(Gold-Plated)
Stock(pcs) 813 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

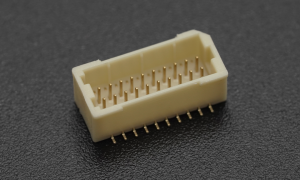

FWF10003-D20S14W5M
Wafer 1mm 180°Vertical 20Circuits (SMT)(Gold-Plated)
Stock(pcs) 234 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

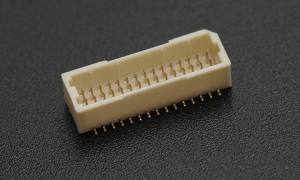

FWF10003-D30S14W5M
Wafer 1mm 180°Vertical 30Circuits (SMT)(Gold-Plated)
Stock(pcs) 311 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

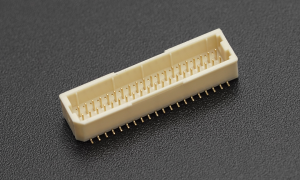

FWF10003-D40S14W5M
Wafer 1mm 180°Vertical 40Circuits (SMT)(Gold-Plated)
Stock(pcs) 704 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

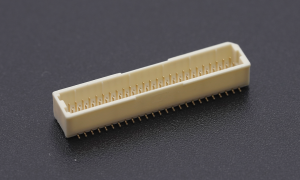

FWF10003-D50S14W5M
Wafer 1mm 180°Vertical 50Circuits (SMT)(Gold-Plated)
Stock(pcs) 10 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits10,12,16,20,30,40,50
- Pitch1.0mm
- Height4.35mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum50V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG10002
- Receptacle-
- TerminalFT10001
- Assembly shell-
