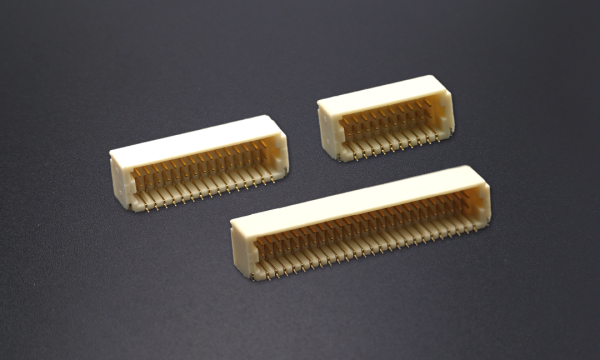

FWF10004 Wafer 1mm 90°Angle (SMT)(Gold-Plated)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

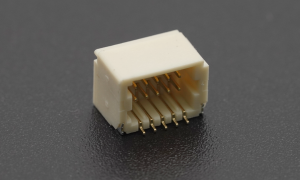

FWF10004-D10B14W5M
Wafer 1mm 90°Angle 10Circuits (SMT)(Gold-Plated)
Stock(pcs) 603 Status Active MPQ 1 MOQ 1 Lead time Estimated delivery date when out of stock 2025-05-27 -

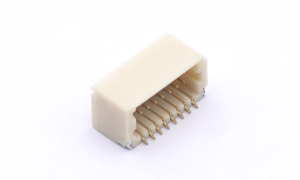

FWF10004-D16B14W5M
Wafer 1mm 90°Angle 16Circuits (SMT)(Gold-Plated)
Stock(pcs) 24 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-06-01 -
FWF10004-D20B14W5M
Wafer 1mm 90°Angle 20Circuits (SMT)(Gold-Plated)
Stock(pcs) 11 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

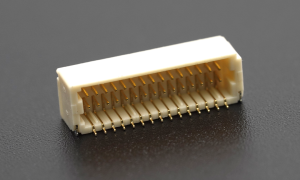

FWF10004-D30B14W5M
Wafer 1mm 90°Angle 30Circuits (SMT)(Gold-Plated)
Stock(pcs) 937 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

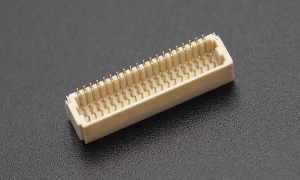

FWF10004-D40B14W5M
Wafer 1mm 90°Angle 40Circuits (SMT)(Gold-Plated)
Stock(pcs) 931 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27 -

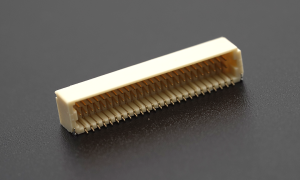

FWF10004-D50B14W5M
Wafer 1mm 90°Angle 50Circuits (SMT)(Gold-Plated)
Stock(pcs) 798 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-27
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits16,20,30,40,50
- Pitch1.0mm
- Height5.6mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum50V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG10002
- Receptacle-
- TerminalFT10001
- Assembly shell-
