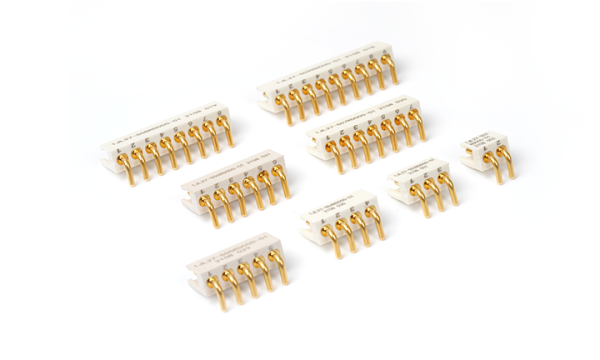

FXJL27-S-R JL27 Connector Socket 3.96mm 90° Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

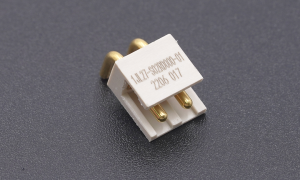

F1JL27-S02RD000-01
JL27 ,Socket ,2Circuits ,90°Angle ,Through Hole
Stock(pcs) 13 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

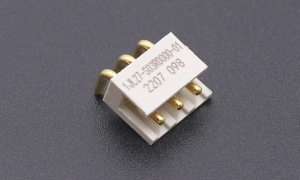

F1JL27-S03RD000-01
JL27 ,Socket ,3Circuits ,90°Angle ,Through Hole
Stock(pcs) 7 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

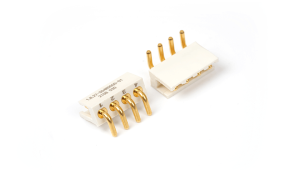

F1JL27-S04RD000-01
JL27 ,Socket ,4Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

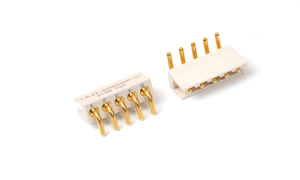

F1JL27-S05RD000-01
JL27 ,Socket ,5Circuits ,90°Angle ,Through Hole
Stock(pcs) 3 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

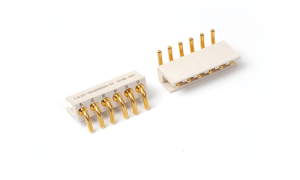

F1JL27-S06RD000-01
JL27 ,Socket ,6Circuits ,90°Angle ,Through Hole
Stock(pcs) 6 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

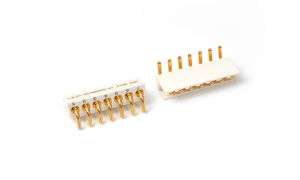

F1JL27-S07RD000-01
JL27 ,Socket ,7Circuits ,90°Angle ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

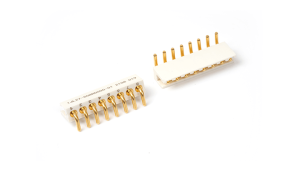

F1JL27-S08RD000-01
JL27 ,Socket ,8Circuits ,90°Angle ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

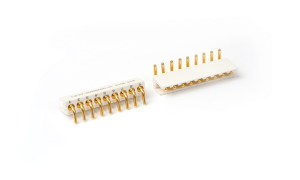

F1JL27-S09RD000-01
JL27 ,Socket ,9Circuits ,90°Angle ,Through Hole
Stock(pcs) 8 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -

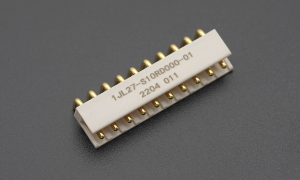

F1JL27-S10RD000-01
JL27 ,Socket ,10Circuits ,90°Angle ,Through Hole
Stock(pcs) 20 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date when out of stock {{2026-04-19|timezoneDate}} -
F1JL27-S11RD000-01
JL27 ,Socket ,11Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S12RD000-01
JL27 ,Socket ,12Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S13RD000-01
JL27 ,Socket ,13Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S14RD000-01
JL27 ,Socket ,14Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S15RD000-01
JL27 ,Socket ,15Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S16RD000-01
JL27 ,Socket ,16Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S17RD000-01
JL27 ,Socket ,17Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S18RD000-01
JL27 ,Socket ,18Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S19RD000-01
JL27 ,Socket ,19Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
F1JL27-S20RD000-01
JL27 ,Socket ,20Circuits ,90°Angle ,Through Hole
Stock(pcs) 0 Status Active MPQ 1000 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryJL27 Connector Socket 90° Angle (DIP)
- Circuits2-20
- Pitch3.96mm
- Height5.8mm
- Electrical
- Current - Maximum per Contact13.00A
- Voltage - Maximum250V
- Contact Resistance3.8 mΩ Max
- Insulation Resistance5000 MΩ Min
- Withstanding Voltage1500V AC r.m.s
- Temperature Range operating-55℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- PulgF0JL27-P,FWJL27-S,FWJL27-D
- Receptacle-
- Terminal-
- Assembly shell-
