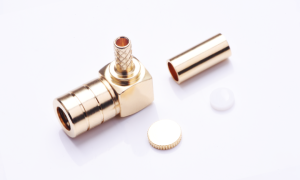

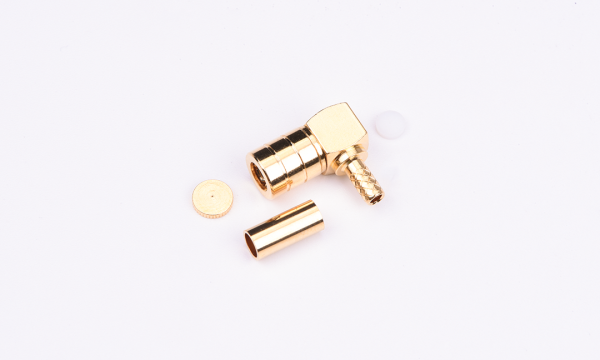

F00SMB-P75S0B0W-01 SMB ,Plug ,75Ohm ,socket ,90° Angle ,Soldering
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategorySMB ,Plug ,75Ohm ,socket ,90° Angle ,Soldering
- Height13.8mm
- Electrical
- Impedance75Ω
- VSWR1.45 Max
- Voltage - Maximum335V
- Insulation Resistance1000MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-55℃+125℃
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPTFE ,UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
