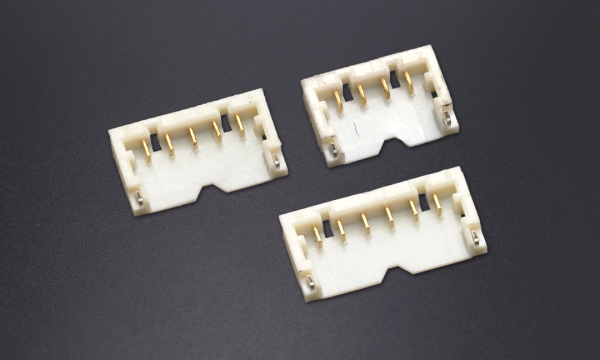

FWF12001 Wafer 1.20mm 90°Angle (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

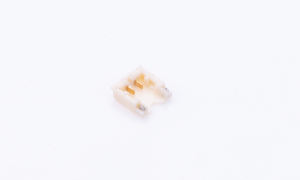

FWF12001-S02B14W1M
Wafer 1.20mm 90°Angle 2Circuits (SMT)
Stock(pcs) 30 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28 -

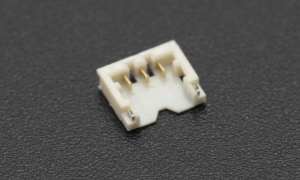

FWF12001-S03B14W1M
Wafer 1.20mm 90°Angle 3Circuits (SMT)
Stock(pcs) 2826 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28 -

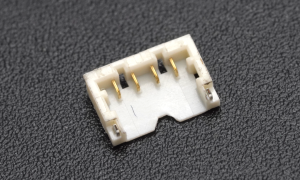

FWF12001-S04B14W1M
Wafer 1.20mm 90°Angle 4Circuits (SMT)
Stock(pcs) 5 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28 -

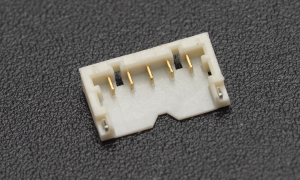

FWF12001-S05B14W1M
Wafer 1.20mm 90°Angle 5Circuits (SMT)
Stock(pcs) 50 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28 -

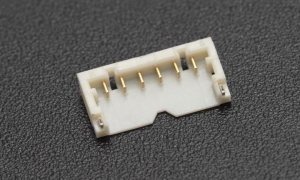

FWF12001-S06B14W1M
Wafer 1.20mm 90°Angle 6Circuits (SMT)
Stock(pcs) 2 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28 -

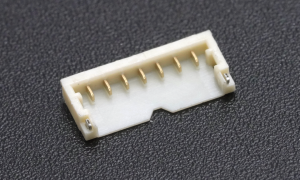

FWF12001-S07B14W1M
Wafer 1.20mm 90°Angle 7Circuits (SMT)
Stock(pcs) 48 Status Active MPQ 3000 MOQ 3000 Lead time Estimated delivery date when out of stock 2025-05-28
- Category
- CategoryWafer 90°Angle (SMT)
- Circuits2-7
- Pitch1.2mm
- Height1.4mm
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum50V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG12001,FHG12003
- Receptacle-
- TerminalFT12001
- Assembly shell-
