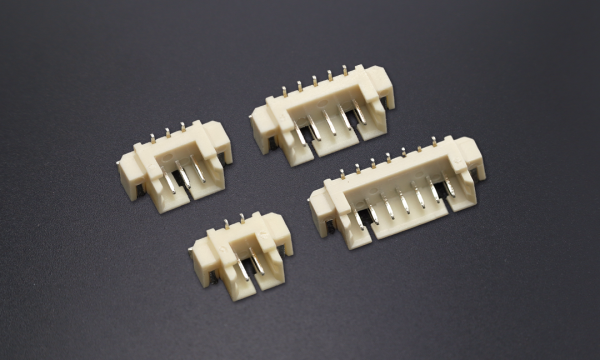

FWF12505 Wafer 1.25mm 180°Vertical(SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

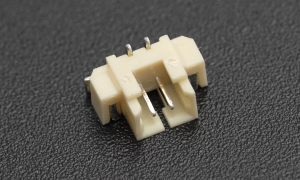

FWF12505-S02S24W5M
Wafer 1.25mm 180°Vertical 2Circuits (SMT)
Stock(pcs) 483 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

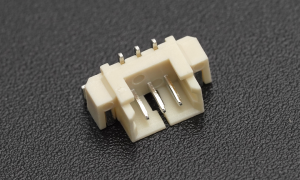

FWF12505-S03S24W5M
Wafer 1.25mm 180°Vertical 3Circuits (SMT)
Stock(pcs) 777 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

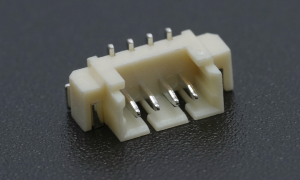

FWF12505-S04S24W5M
Wafer 1.25mm 180°Vertical 4Circuits (SMT)
Stock(pcs) 1410 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

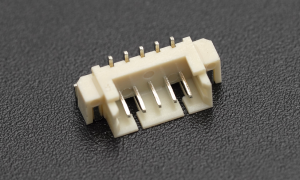

FWF12505-S05S24W5M
Wafer 1.25mm 180°Vertical 5Circuits (SMT)
Stock(pcs) 808 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

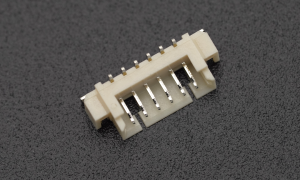

FWF12505-S06S24W5M
Wafer 1.25mm 180°Vertical 6Circuits (SMT)
Stock(pcs) 1747 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

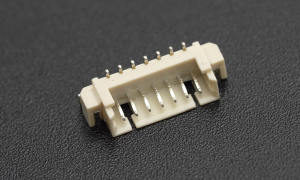

FWF12505-S07S24W5M
Wafer 1.25mm 180°Vertical 7Circuits (SMT)
Stock(pcs) 851 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

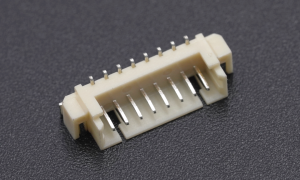

FWF12505-S08S24W5M
Wafer 1.25mm 180°Vertical 8Circuits (SMT)
Stock(pcs) 110 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

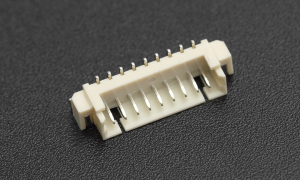

FWF12505-S09S24W5M
Wafer 1.25mm 180°Vertical 9Circuits (SMT)
Stock(pcs) 640 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

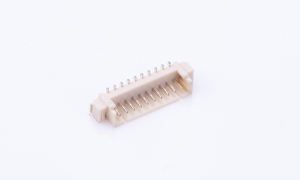

FWF12505-S10S24W5M
Wafer 1.25mm 180°Vertical 10Circuits (SMT)
Stock(pcs) 775 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

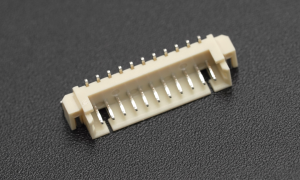

FWF12505-S11S24W5M
Wafer 1.25mm 180°Vertical 11Circuits (SMT)
Stock(pcs) 801 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

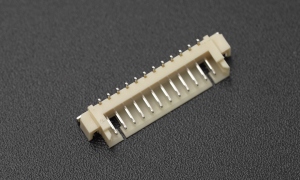

FWF12505-S12S24W5M
Wafer 1.25mm 180°Vertical 12Circuits (SMT)
Stock(pcs) 514 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

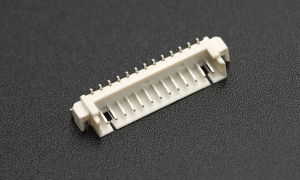

FWF12505-S13S24W5M
Wafer 1.25mm 180°Vertical 13Circuits (SMT)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date 2025-05-31 -

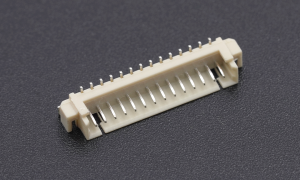

FWF12505-S14S24W5M
Wafer 1.25mm 180°Vertical 14Circuits (SMT)
Stock(pcs) 409 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31 -

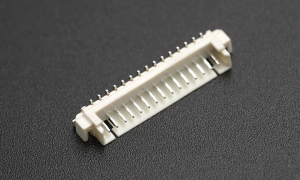

FWF12505-S15S24W5M
Wafer 1.25mm 180°Vertical 15Circuits (SMT)
Stock(pcs) 675 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-31
- Category
- CategoryWafer 180°Vertical (SMT)
- Circuits2-15
- Pitch1.25mm
- Height4.8mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum125V
- Contact Resistance20 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage250V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA9T UL94V-0
- Compatible Parts
- PulgFHG12502
- Receptacle-
- TerminalFT12501
- Assembly shell-
