FFC12502 FPC/FFC connector 1.25mm(DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FFC12502-05DBA226W5L

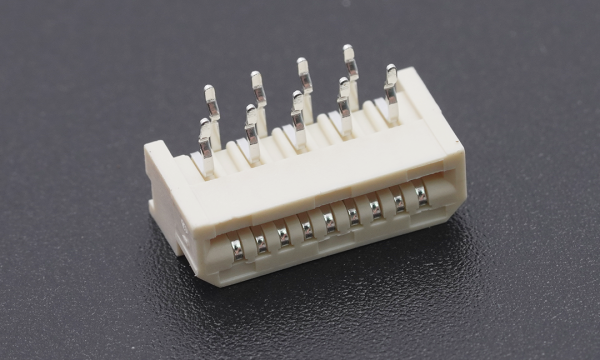

FPC/FFC connector 1.25mm ,5Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-05DBB226W5L

FPC/FFC connector 1.25mm ,5Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-06DBA226W5L

FPC/FFC connector 1.25mm ,6Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-06DBB226W5L

FPC/FFC connector 1.25mm ,6Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-07DBA226W5L

FPC/FFC connector 1.25mm ,7Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-07DBB226W5L

FPC/FFC connector 1.25mm ,7Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-08DBA226W5L

FPC/FFC connector 1.25mm ,8Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-08DBB226W5L

FPC/FFC connector 1.25mm ,8Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-09DBA226W5L

FPC/FFC connector 1.25mm ,9Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-09DBB226W5L

FPC/FFC connector 1.25mm ,9Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-10DBA226W5L

FPC/FFC connector 1.25mm ,10Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-10DBB226W5L

FPC/FFC connector 1.25mm ,10Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-11DBA226W5L

FPC/FFC connector 1.25mm ,11Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-11DBB226W5L

FPC/FFC connector 1.25mm ,11Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-12DBA226W5L

FPC/FFC connector 1.25mm ,12Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-12DBB226W5L

FPC/FFC connector 1.25mm ,12Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-13DBA226W5L

FPC/FFC connector 1.25mm ,13Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-13DBB226W5L

FPC/FFC connector 1.25mm ,13Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-14DBA226W5L

FPC/FFC connector 1.25mm ,14Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-14DBB226W5L

FPC/FFC connector 1.25mm ,14Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-15DBA226W5L

FPC/FFC connector 1.25mm ,15Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-15DBB226W5L

FPC/FFC connector 1.25mm ,15Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-16DBA226W5L

FPC/FFC connector 1.25mm ,16Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-16DBB226W5L

FPC/FFC connector 1.25mm ,16Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-17DBA226W5L

FPC/FFC connector 1.25mm ,17Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-17DBB226W5L

FPC/FFC connector 1.25mm ,17Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-19DBA226W5L

FPC/FFC connector 1.25mm ,19Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-19DBB226W5L

FPC/FFC connector 1.25mm ,19Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-20DBA226W5L

FPC/FFC connector 1.25mm ,20Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-20DBB226W5L

FPC/FFC connector 1.25mm ,20Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-21DBA226W5L

FPC/FFC connector 1.25mm ,21Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

FFC12502-21DBB226W5L

FPC/FFC connector 1.25mm ,21Circuits ,90° Angle(DIP)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1
Lead time	Estimated delivery date 2025-06-03

Category
CategoryFPC/FFC Connector（90°DIP）
Circuits5-17,19-21
Pitch1.25mm
Contact directionSingle contact
Height4.45mm
Electrical
Current - Maximum per Contact0.50A
Voltage - Maximum50V
Contact Resistance20 mΩ Max
Insulation Resistance800 MΩ Min
Withstanding Voltage500V AC r.m.s
Temperature Range operating-25ºC~+85ºC
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingTin
Material - Plating TerminationTin
Material - ResinPA46 UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

Drawing-FFC12502.pdf
