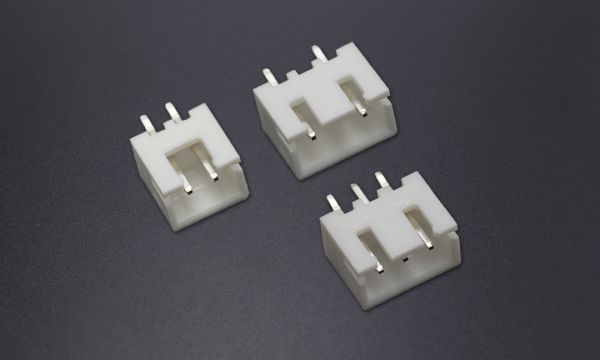

FWF25001 Wafer 2.5mm 180°Vertical (DIP)_TXGA Industrial Electronic Co., Ltd.

FWF25001 Wafer 2.5mm 180°Vertical (DIP)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

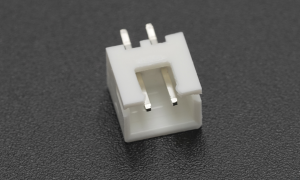

FWF25001-S02S22W1B

Wafer 2.5mm 180°Vertical 2Circuits (DIP)

Stock(pcs)	96146	Status	Active
MPQ	2000	MOQ	2000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

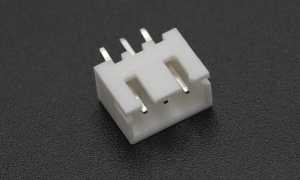

FWF25001-S03S22W1B

Wafer 2.5mm 180°Vertical 3Circuits (DIP)

Stock(pcs)	42673	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

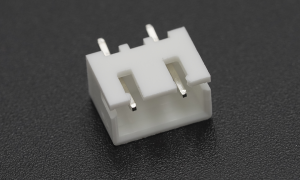

FWF25001-S03S22W1B-E2

Wafer 2.5mm 180°Vertical 3Circuits (DIP)(Canceled No.2Circuits)

Stock(pcs)	335	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

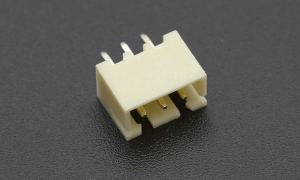

FWF25001-S03S24W5B

Wafer 2.5mm 180°Vertical 3Circuits (DIP)

Stock(pcs)	32268	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S04S22W1B

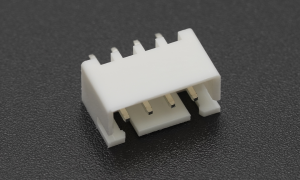

Wafer 2.5mm 180°Vertical 4Circuits (DIP)

Stock(pcs)	41069	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S04S22W1B-E23

Wafer 2.5mm 180°Vertical 4Circuits (DIP)(Canceled No.2,3Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

FWF25001-S04S24W5B

Wafer 2.5mm 180°Vertical 4Circuits (DIP)

Stock(pcs)	1240	Status	Active
MPQ	1000	MOQ	5000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S05S22W1B

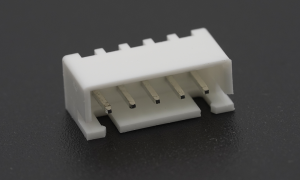

Wafer 2.5mm 180°Vertical 5Circuits (DIP)

Stock(pcs)	35709	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S05S22W1B-E3

Wafer 2.5mm 180°Vertical 5Circuits (DIP)(Canceled No.3Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

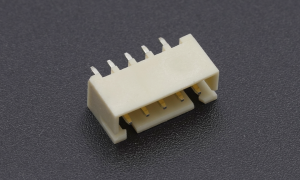

FWF25001-S05S24W5B

Wafer 2.5mm 180°Vertical 5Circuits (DIP)

Stock(pcs)	4205	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S06S22W1B

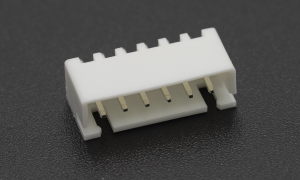

Wafer 2.5mm 180°Vertical 6Circuits (DIP)

Stock(pcs)	14007	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S06S22W1B-E34

Wafer 2.5mm 180°Vertical 6Circuits (DIP) (Canceled No.3,4Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	50000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

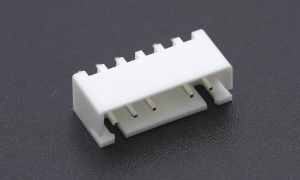

FWF25001-S06S22W1B-E4

Wafer 2.5mm 180°Vertical 6Circuits (DIP)(Canceled No.4Circuits)

Stock(pcs)	10	Status	Active
MPQ	1000	MOQ	50000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

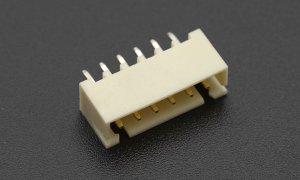

FWF25001-S06S24W5B

Wafer 2.5mm 180°Vertical 6Circuits (DIP)

Stock(pcs)	8327	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S07S22W1B

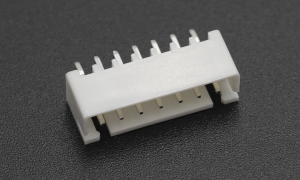

Wafer 2.5mm 180°Vertical 7Circuits (DIP)

Stock(pcs)	22940	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

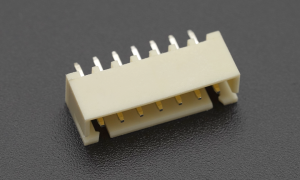

FWF25001-S07S24W5B

Wafer 2.5mm 180°Vertical 7Circuits (DIP)

Stock(pcs)	9978	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

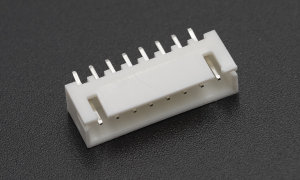

FWF25001-S08S22W1B

Wafer 2.5mm 180°Vertical 8Circuits (DIP)

Stock(pcs)	1454	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S08S22W1B-E6

Wafer 2.5mm 180°Vertical 8Circuits (DIP)(Canceled No.6Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	50000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

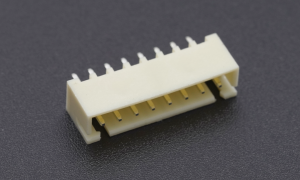

FWF25001-S08S24W5B

Wafer 2.5mm 180°Vertical 8Circuits (DIP)

Stock(pcs)	13634	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S09S22W1B

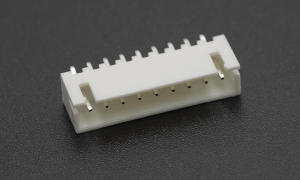

Wafer 2.5mm 180°Vertical 9Circuits (DIP)

Stock(pcs)	4265	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S09S22W1B-E4

Wafer 2.5mm 180°Vertical 9Circuits (DIP)(Canceled No.4Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-14\|timezoneDate}}

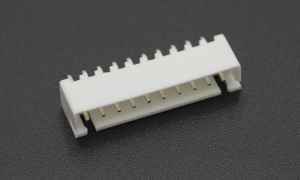

FWF25001-S10S22W1B

Wafer 2.5mm 180°Vertical 10Circuits (DIP)

Stock(pcs)	1848	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S10S22W1B-E2

Wafer 2.5mm 180°Vertical 10Circuits (DIP)(Canceled No.2Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

FWF25001-S10S22W1B-E3

Wafer 2.5mm 180°Vertical 10Circuits (DIP)(Canceled No.3Circuits)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date {{2026-04-18\|timezoneDate}}

FWF25001-S10S24W5B

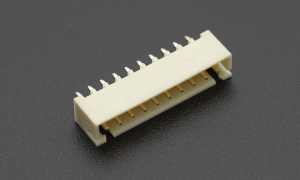

Wafer 2.5mm 180°Vertical 10Circuits (DIP)

Stock(pcs)	7196	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

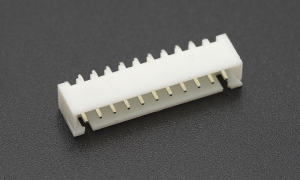

FWF25001-S11S22W1B

Wafer 2.5mm 180°Vertical 11Circuits (DIP)

Stock(pcs)	5	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S12S22W1B

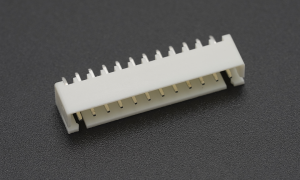

Wafer 2.5mm 180°Vertical 12Circuits (DIP)

Stock(pcs)	1053	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

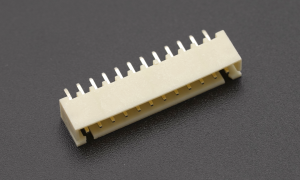

FWF25001-S12S24W5B

Wafer 2.5mm 180°Vertical 12Circuits (DIP)

Stock(pcs)	4735	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

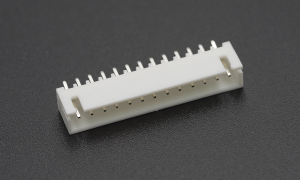

FWF25001-S13S22W1B

Wafer 2.5mm 180°Vertical 13Circuits (DIP)

Stock(pcs)	140	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

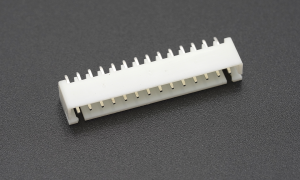

FWF25001-S14S22W1B

Wafer 2.5mm 180°Vertical 14Circuits (DIP)

Stock(pcs)	1	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S14S24W5B

Wafer 2.5mm 180°Vertical 14Circuits (DIP)

Stock(pcs)	8568	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

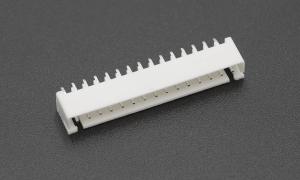

FWF25001-S15S22W1B

Wafer 2.5mm 180°Vertical 15Circuits (DIP)

Stock(pcs)	300	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

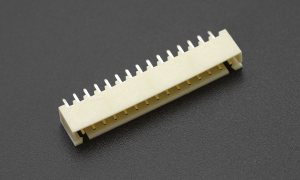

FWF25001-S15S24W5B

Wafer 2.5mm 180°Vertical 15Circuits (DIP)

Stock(pcs)	4765	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S16S22W1B

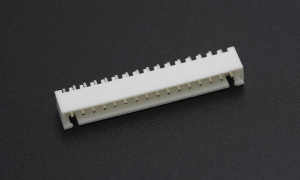

Wafer 2.5mm 180°Vertical 16Circuits (DIP)

Stock(pcs)	1308	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

FWF25001-S16S24W5B

Wafer 2.5mm 180°Vertical 16Circuits (DIP)

Stock(pcs)	1863	Status	Discontinued
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock {{2026-04-14\|timezoneDate}}

Category
CategoryWafer 180°Vertical (DIP)
Circuits2-16
Pitch2.5mm
Height7.0mm
Electrical
Current - Maximum per Contact3.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance1000 MΩ Min
Withstanding Voltage1000V AC r.m.s
Temperature Range operating-40℃+85℃
Material and Plating
Material-MetalPhosphor Bronze
Material - Plating MatingTin
Material - Plating TerminationTin
Material - ResinPA6T UL94V-0/PA66 UL94V-0
Compatible Parts
PulgFHG25001
Receptacle-
TerminalFT25001
Assembly shell-
