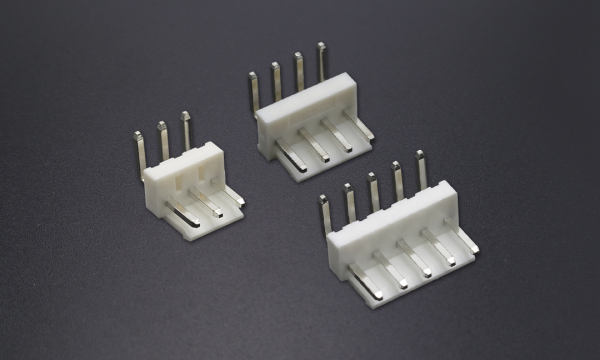

FWF39602 Wafer 3.96mm 90°Angle (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

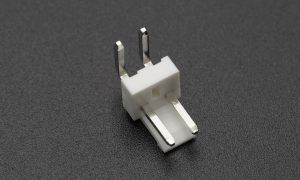

FWF39602-S02B22W1B
Wafer 3.96mm 90°Angle 2Circuits (DIP)
Stock(pcs) 926 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S02B24W5B
Wafer 3.96mm 90°Angle 2Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

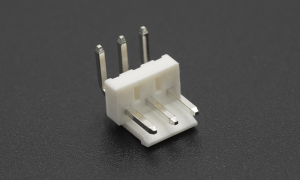

FWF39602-S03B22W1B
Wafer 3.96mm 90°Angle 3Circuits (DIP)(HF)
Stock(pcs) 2050 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

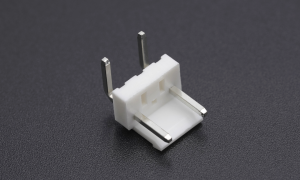

FWF39602-S03B22W1B-E2
Wafer 3.96mm 90°Angle 3Circuits (DIP)(Canceled No.2Circuits)
Stock(pcs) 4875 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S03B24W5B
Wafer 3.96mm 90°Angle 3Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

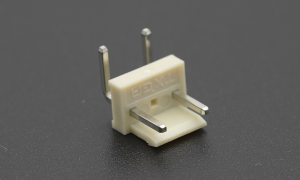

FWF39602-S03B24W5B-E2
Wafer 3.96mm 90°Angle 3Circuits (DIP)(Canceled No.2Circuits)
Stock(pcs) 1000 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

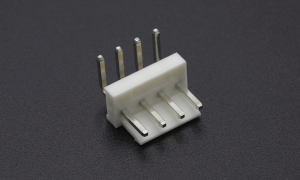

FWF39602-S04B22W1B
Wafer 3.96mm 90°Angle 4Circuits (DIP)(HF)
Stock(pcs) 590 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S04B24W5B
Wafer 3.96mm 90°Angle 4Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

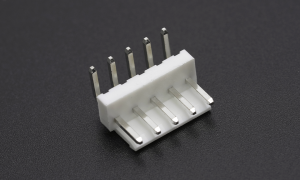

FWF39602-S05B22W1B
Wafer 3.96mm 90°Angle 5Circuits (DIP)(HF)
Stock(pcs) 487 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S05B22W1B-E2
Wafer 3.96mm 90°Angle 5Circuits (DIP)(Canceled No.2Circuits)(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S05B24W5B
Wafer 3.96mm 90°Angle 5Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

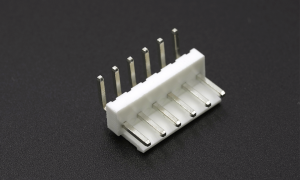

FWF39602-S06B22W1B
Wafer 3.96mm 90°Angle 6Circuits (DIP)(HF)
Stock(pcs) 12125 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

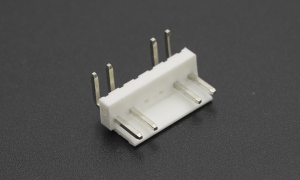

FWF39602-S06B22W1B-E34
Wafer 3.96mm 90°Angle 6Circuits (DIP)(Canceled No.3,4Circuits)(HF)
Stock(pcs) 200 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S06B24W5B
Wafer 3.96mm 90°Angle 6Circuits (DIP)
Stock(pcs) 20 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -

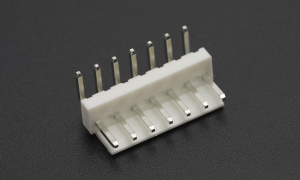

FWF39602-S07B22W1B
Wafer 3.96mm 90°Angle 7Circuits (DIP)(HF)
Stock(pcs) 6616 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S07B24W5B
Wafer 3.96mm 90°Angle 7Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S07B24W5B-E246
Wafer 3.96mm 90°Angle 7Circuits (DIP)(Canceled No.2,4,6Circuits)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S08B22W1B
Wafer 3.96mm 90°Angle 8Circuits (DIP)(HF)
Stock(pcs) 799 Status Active MPQ 1000 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S08B24W5B
Wafer 3.96mm 90°Angle 8Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 20000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

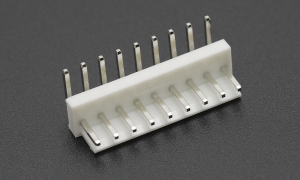

FWF39602-S09B22W1B
Wafer 3.96mm 90°Angle 9Circuits (DIP)(HF)
Stock(pcs) 15684 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S09B24W5B
Wafer 3.96mm 90°Angle 9Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S10B22W1B
Wafer 3.96mm 90°Angle 10Circuits (DIP)(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S10B24W5B
Wafer 3.96mm 90°Angle 10Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

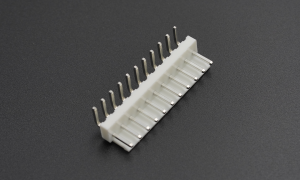

FWF39602-S11B22W1B
Wafer 3.96mm 90°Angle 11Circuits (DIP)(HF)
Stock(pcs) 50 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}} -
FWF39602-S11B24W5B
Wafer 3.96mm 90°Angle 11Circuits (DIP)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -

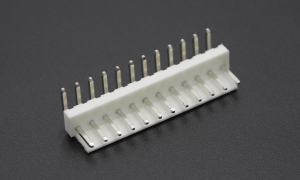

FWF39602-S12B22W1B
Wafer 3.96mm 90°Angle 12Circuits (DIP)(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-14|timezoneDate}} -
FWF39602-S12B22W1B-E67
Wafer 3.96mm 90°Angle 12Circuits (DIP)(Canceled No.6,7Circuits)(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -
FWF39602-S12B22W1B-E78
Wafer 3.96mm 90°Angle 12Circuits (DIP)(Canceled No.7,8Circuits)(HF)
Stock(pcs) 0 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}} -

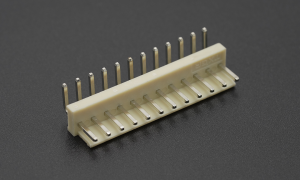

FWF39602-S12B24W5B
Wafer 3.96mm 90°Angle 12Circuits (DIP)
Stock(pcs) 60 Status Active MPQ 1000 MOQ 10000 Lead time Estimated delivery date when out of stock {{2026-04-14|timezoneDate}}
- Category
- CategoryWafer 90°Angle (DIP)
- Circuits2-12
- Pitch3.96mm
- Height9.4mm
- Electrical
- Current - Maximum per Contact7.00A
- Voltage - Maximum250V
- Contact Resistance10 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage1500V AC r.m.s
- Temperature Range operating-25℃+85℃
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingTin
- Material - Plating TerminationTin
- Material - ResinPA6T UL94V-0/PA66 UL94V-0
- Compatible Parts
- PulgFHG39601
- Receptacle-
- TerminalFT39601
- Assembly shell-
